200W 20A MPPT Kit


  • Description
This Starter Solar System Kit includes two 100W Flexible Solar Panels, one 20A PWM Solar Charger Controller with Bluetooth Adapter, one pair 10ft 12AWG Solar Cables, one pair 6ft 12AWG Battery Cables and one set Y Branch Adapter Cable.


Save 0 %
200W 20A MPPT Kit

$429.99

  • Details
  • Description
  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

This Starter Solar System Kit includes two 100W Flexible Solar Panels, one 20A PWM Solar Charger Controller with Bluetooth Adapter, one pair 10ft 12AWG Solar Cables, one pair 6ft 12AWG Battery Cables and one set Y Branch Adapter Cable.


SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Kit Includes


specifications

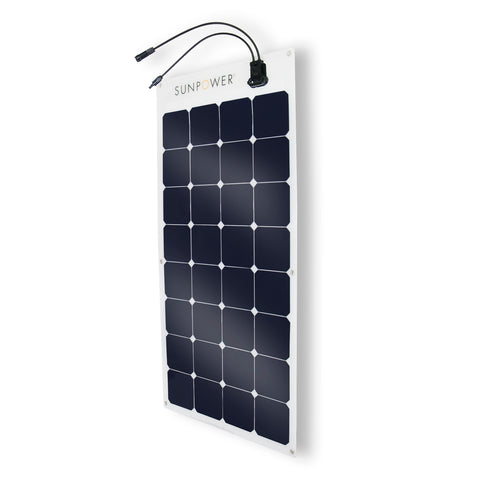

  • 100W Solar Panel
    Solar Panel
  • 20A MPPT Solar Charge Controller
    Controller
  • Bluetooth
    Controller

PHYSICAL DETAILS

Dimensions

Weight

45.9 x 21.9 x 0.8 in

4.4 Lbs

Cells

Connections

Gen II SunPower/Maxeon solar cells

PV


INTERNAL SPECS

Rated Voltage [Vmpp]
Rated Current [Impp]
Open Circuit Voltage [Voc]

Short Circuit Current [Isc]

Max Series Fuse Rating

18.5V

6.0A

21.7V

6.3A

15A

Power Temp Coefficient

Voltage Temp Coefficient

Current Temp Coefficient

Max. System Voltage

–0.30% / °C

–55.8 mV / °C

3.5 mA / °C

45V


WARRANTY / CERTIFICATIONS

Certification

UL

Warranty

1 Year


PHYSICAL DETAILS

Dimensions

Weight

8 x 5.6 x 2.5 in

2.4 Lbs

Terminals

Battery Compatibility
Battery Compatibility

Up to #8AWG

SLA, Flooded, Gel, AGM, LiFePo4


INTERNAL SPECS

Nominal Voltage

Rated Charge Current

Max. PV Input Voltage

Self-Consumption

12/24V Auto Recognition

20A

100V

≤10mA

Enclosure

Temp. Compensation


Temperature Ranges


IP32

-3mV/℃/2V

Operational:  -31°F — 113°F


Storage:        -31°F — 176˚F


WARRANTY / CERTIFICATIONS

Certification

CE / EMC Certifications

Warranty

1 Year

This Bluetooth Module is compatible with our MPPT Solar Charge Controllers with the connection on the component's RS232 communication port, wirelessly check and adjust your system's parameters through the DC Home App (available with the Apple and Android phones)

Compatible MPPT Solar Charge Controller:

SCSMPPT20L - 20A MPPT
SCSMPPT30L - 30A MPPT
SCSMPPT60L - 60A MPPT
