Controlador de carga solar 10A PWM

Name: Controlador de carga solar 10A PWM
Brand: ExpertPower Direct
SKU: SCHPWM10
Price: 20.99 USD
Availability: InStock

Get the best solar connectors, cables, and accessories for a high-performance PV array. Ensure secure, efficient, and reliable power generation for years to come.

$20.99

Have Questions? Call us now:

Shipping

We use Priority and Ground services on all shipments within the contiguous United States unless otherwise noted or an expedited option is selected by the customer. Please allow 1 business day for processing and an additional 1-6 business days for your order to arrive based on your location and products ordered. For more information please refer to our compete Shipping Policy Page.

Returns & Exchanges

You can return your item within 30 days of purchase for a refund. All you need to do to start a return is contact us through your preferred channel and provide us your order number. Please refer to our Return and Exchange Guidelines for more information.

Warranty

A 1-Year Limited Warranty against defects in material and workmanship is included. For more information, please refer to our Warranty Information Page.

Overview
Specifications
Reviews

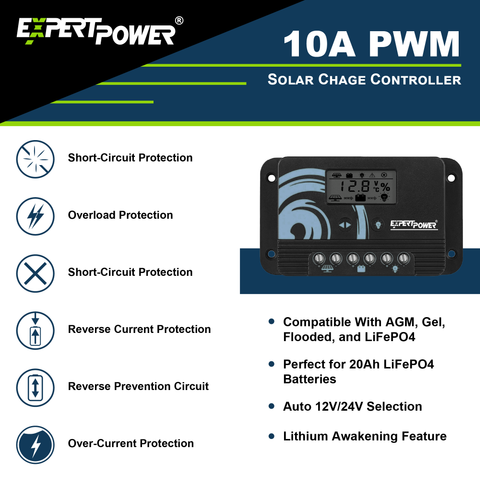

El controlador de carga de 10 A es un controlador de tierra positivo inteligente adecuado para diversas aplicaciones solares fuera de la red. Al integrar una carga PWM altamente eficiente, este controlador aumenta la duración de la batería y mejora el rendimiento del sistema. Se puede utilizar para bancos de baterías de 12V/24V. El controlador está integrado con funciones de autodiagnóstico y protección electrónica que evitan daños por errores de instalación o fallas del sistema.

Este controlador de 10 A es inteligente con múltiples perfiles de carga, que es compatible con baterías de fosfato de hierro y litio (LiFePO4), baterías de plomo ácido selladas (AGM, GEL), baterías inundadas y baterías de litio ternarias.

General Specifications

Weight

0,32 libras

Length

4.8 in

Width

2.8 in

Height

1.4 in

Certification

Certificaciones CE/EMC

Warranty

1 Year

Technical Specifications

Wire Size

Hasta #14AWG

Battery Compatibility

AGM, GEL, LiFePO4

Nominal Voltage

12/24V Auto Recognition

Rated Voltage

20.6 V

Rated Current

10A

Maximum PV Input Voltage

55V

Self-Consumption

8mA/12V; 12mA/24V

Enclosure

Temperature Compensation

-3mV/℃/2V

Temperature Ranges

Operational: -31°F — 113°F

Storage: -31°F — 176˚F
