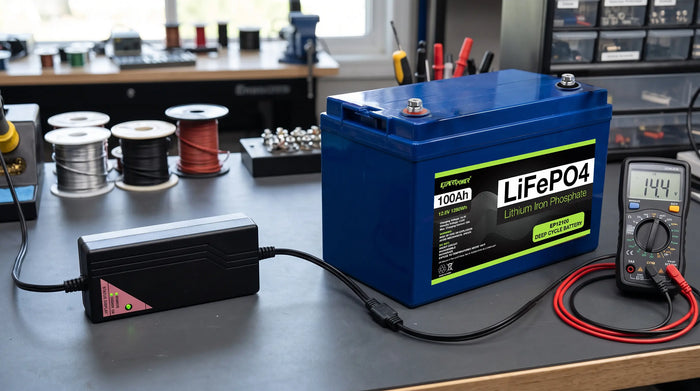

Why You Can’t Just Use a Lead-Acid Charger on LiFePO4 (And What Happens If You Do)

oct 06, 2026 Publicado por: ExpertPower Insights AGM,  Battery Backup Systems,  Inverters & Chargers,  Learning,  LiFePO4,  Safety,  Seal Lead Acid Batteries,  Sealed Lead Acid,  SLA
Why You Can’t Just Use a Lead-Acid Charger on LiFePO4 (And What Happens If You Do)

After upgrading to a high-performance lithium battery, it is tempting to reach for your existing garage charger. The logic seems straightforward enough: both batteries are rated for 12 volts, both feature positive and negative terminal posts, and both power the same inverters, trolling motors, or RV appliances. So why invest in a dedicated lithium charger?

While an old automotive or marine lead-acid charger might push current into a lithium battery in a pinch, doing so on a regular basis creates severe algorithmic conflicts. Lithium Iron Phosphate (LiFePO4) chemistry requires a fundamentally different charging method than traditional flooded, AGM, or sealed lead-acid (SLA) batteries. Using the wrong algorithm risks tripping your internal protection systems, causing chronic undercharging, and cutting your battery's service life short.

The Algorithmic Clash: Multi-Stage Lead-Acid vs. 2-Stage CC/CV

To understand the mismatch, look at how each charger talks to battery chemistry.

How Lead-Acid Chargers Work

Lead-acid batteries suffer from heavy natural self-discharge, acid stratification, and internal plate sulfation. To combat this, standard lead-acid chargers use complex 3-stage or 4-stage cycles:

  • Equalization / Desulfation: A deliberate over-voltage burst (often exceeding 15.5V to 16V+) designed to shake up stratified liquid acid and dissolve hardened lead-sulfate crystals from lead plates.
  • Continuous Float Stage: After absorption, the charger continuously trickles 13.5V to 13.8V into the battery indefinitely to offset the high self-discharge rate typical of lead plates.

How LiFePO4 Chargers Work

LiFePO4 chemistry contains no liquid acid to stratify and does not generate sulfate crystals. Instead, it requires a clean, controlled two-stage Constant Current / Constant Voltage (CC/CV) charge profile:

  1. Constant Current (Bulk Stage): The charger supplies its full rated amperage while battery voltage steadily rises up to the target ceiling (~14.4V–14.6V for a standard 12V 4-cell pack).
  2. Constant Voltage (Absorption Stage): The charger holds the target voltage steady while current naturally tapers down toward near-zero as the cells saturate.
  3. Full Termination (No Trickle): Once saturated, the charger stops active charging. Because LiFePO4 has a negligible self-discharge rate (only ~2% to 3% per month), it does not need or tolerate continuous float voltage, which slowly degrades internal cell materials over prolonged storage.

What Actually Happens When You Use a Lead-Acid Charger

1. The BMS Over-Voltage Disconnect (0V Reading)

If your legacy charger initiates an automatic desulfation cycle or high-voltage equalization pulse (>15.0V), the internal Integrated Battery Management system steps in. To prevent the individual cells from being overcharged, the BMS opens its internal charge MOSFETs, cutting off the circuit. The battery terminals immediately read 0V, causing many owners to mistakenly believe their new battery just failed.

2. The "90% Trap" (Premature Float and Undercharging)

A standard 12V lead-acid battery is considered fully charged at roughly 12.7V. A 12V LiFePO4 battery, on the other hand, rests around 13.3V to 13.4V and requires an absorption voltage of 14.4V–14.6V to achieve true 100% capacity. When an older lead charger detects the battery passing 13.6V, it often assumes the battery is near completion and transitions prematurely into low-voltage float mode. The result? Your lithium battery remains stuck between 70% and 85% capacity, robbing you of the full runtime you paid for.

3. Chronic Cell Imbalance

Passive cell balancing inside a lithium battery occurs almost exclusively during the final absorption window, when the highest-voltage cells exceed 3.45V per cell (above ~14.0V on a 12V pack). If a lead-acid charger drops into float early, the BMS never enters its balancing window. Over several dozen cycles, slight variations between individual cells compound, reducing the overall usable capacity of the entire pack.

The 0V Wake-Up Dilemma

If your battery ever completely drains, or if an accidental short circuit or over-voltage pulse causes the BMS to trip into protection mode, the battery outputs zero terminal voltage. Standard automotive smart chargers require reading residual voltage (usually 2V to 8V) before they initiate current flow. Because the tripped lithium pack shows 0V, the charger assumes no battery is connected and refuses to activate.

Dedicated ExpertPower LiFePO4 Chargers feature built-in 0V activation circuitry. They supply a steady, low-voltage wake-up signal to signal the BMS, closing the internal protection switches safely and allowing normal charging to resume automatically.

Selecting the Right LiFePO4 Charger for Your Bank

Matching your charger's output current to your battery's amp-hour (Ah) rating ensures optimal cycle life and efficient charge times. A standard rule of thumb is a charge rate between 0.2C and 0.5C (20A to 50A per 100Ah of capacity):

  • Portable Electronics & Sonar Packs (7Ah–20Ah): The EPC121 (12V 1A) or EPC122 (12V 2A) provides gentle, controlled replenishment for kayak fishfinders, deer feeders, and compact gear.
  • Mid-Range Deep-Cycle Packs (20Ah–50Ah): The EPC125 (12V 5A) delivers reliable overnight turnaround for small trolling setups and mobility applications[cite: 5].
  • Standard Drop-In Banks (100Ah–200Ah): The EPC1220 (12V 20A) sits right at the optimal 0.2C rate for single 100Ah batteries, providing a complete 0-to-100% recharge in approximately 5 hours without generating excess heat[cite: 5].
  • High-Capacity & Commercial House Banks (200Ah–400Ah+): The EPC1250 (12V 50A) provides rapid turnaround for heavy RV setups, off-grid cabins, and mobile work trucks running parallel battery banks[cite: 5].

Protect Your Battery Investment with Dedicated Charging

Ensure fast, balanced charging and full capacity on every cycle. Pair your lithium setup with chargers engineered specifically for LiFePO4 chemistry.

Explore ExpertPower LiFePO4 Chargers

Grade A vs. Grade B LiFePO4: How to Spot Inferior Raw Cells Before You Buy

sept 28, 2026 Publicado por: ExpertPower Insights Battery Backup Systems,  Education,  Grid-Tie,  Learning,  LiFePO4,  Off-Grid,  Safety,  Solar Power
Grade A vs. Grade B LiFePO4: How to Spot Inferior Raw Cells Before You Buy

Building your own lithium battery bank using 3.2V LiFePO4 prismatic cells is one of the most cost-effective, high-yield upgrades you can make for an off-grid home, RV, or marine power system. Whether you are assembling a compact 12V 4S setup or a massive 48V 16S power wall, raw prismatic cells give you unmatched control over energy density, layout footprint, and serviceability.

However, the raw cell market can often feel like a gamble. Because prismatic cells do not arrive sealed inside pre-wired commercial plastic enclosures, the responsibility of verifying cell health falls squarely on the builder. The market is saturated with heavily discounted cells labeled as "brand new" that are actually factory rejects, bloated warranty returns, or degraded surplus from electric vehicle lines.

If you want your custom battery bank to reliably deliver its promised 4,000 to 6,000+ cycles, you need to understand the critical difference between true Grade A cells and cut-rate Grade B units.

What Actually Distinguishes Grade A from Grade B?

To make an informed purchase, it helps to understand why tier-one cell manufacturers (like EVE, CATL, CALB, and REPT) classify cells in the first place.

Factory Grade A: Engineered for Automotive Standards

Manufacturers design their production lines to meet the strict demands of electric vehicles (EVs) and high-load commercial Energy Storage Systems (BESS). To be certified as Grade A, a cell must pass stringent factory quality controls:

  • Full Rated Capacity: The cell consistently meets or exceeds 100% of its rated amp-hour (Ah) spec during 0.5C/1C discharge bench testing.
  • Ultra-Low Internal Resistance (IR): Alternating-current internal resistance remains tightly clustered (typically ≤ 0.20–0.30 mΩ on high-capacity units).
  • Pristine Geometry: Laser-welded aluminum cases are 100% planar flat with no premature belly bulge, warping, or terminal scoring.
  • Maximum Cycle Life: Designed to sustain 4,000 to 6,000+ deep cycles before degrading to 80% State of Health (SoH).

Grade B: The Factory Drop-Offs

A "Grade B" cell is not necessarily dead on arrival, but it failed to satisfy EV-grade parameters during testing. Reasons for rejection include:

  • Failing capacity minimums (e.g., testing at 94%–97% of nominal rating).
  • High internal resistance or fast self-discharge rates.
  • Physical swelling or surface inconsistencies incurred during initial formation cycles.

Secondary liquidators frequently purchase these factory rejects in bulk, grind away factory reject markings, wrap them in fresh shrink sleeves, and resell them online to unsuspecting DIYers as "Grade A" bargains.

The 4-Point Cell Inspection Checklist

Before bolting down your busbars or wiring balance leads, inspect every raw cell against this four-point physical and technical checklist:

1. The Laser-Etched QR Code

Every authentic prismatic cell features a laser-etched 24-digit data matrix code on the top plate near the terminal. This code tracks the manufacturing facility, chemistry, model, and date of production.

Watch out for:

  • Ground-down top plates: Look under direct light for circular scuff marks or shallow indentations where an original factory QR code was ground away and re-etched.
  • Paper stickers: Genuine manufacturers do not use paper or vinyl barcode stickers in place of laser etching.
  • Gouged/scratched codes: Done intentionally by liquidators to keep customers from pulling the manufacturer's failure records.

2. Casing Flatness and Visual Swelling

While LiFePO4 cells naturally expand slightly during charging (which is why rigid compression fixtures are recommended for your pack), a brand-new, uncycled cell must arrive perfectly flat.

Hold a metal straight-edge horizontally across the broad face of the cell. If there is visible light passing beneath the edges or a pronounced outward bulge in the center, the cell has either been cycled, overheated, or over-discharged in transit.

3. Terminal Integrity and Thread Condition

Inspect the positive and negative terminals thoroughly:

  • Welded Studs: Inspect the circular laser-weld seam around the stud base. It must be clean, even, and free of spatter or burn discoloration.
  • Female Tapped Terminals: Ensure the internal threads are sharp, clean, and unstripped. Stripped threads or arc burn scars signify salvage units that were previously installed and torqued down.

4. Matched Internal Resistance & Voltage

A healthy lot of raw cells must be matched right out of the box:

  • Resting Voltage (OCV): At 30%–50% shipping State of Charge, all cells in your lot should rest within 0.01V to 0.02V of each other (typically between 3.25V and 3.29V).
  • Internal Resistance (AC IR): Using a dedicated 1kHz AC milliohm meter (like an RC3563 or YR1035+), IR readings across your entire pack should stay within a 0.03 to 0.05 mΩ variance window.

The Hidden Danger: Why a Single Grade B Cell Destroys a Series Pack

Why does a single underperforming cell matter if the other 15 in your 48V bank are fine? It comes down to the weakest link principle.

In a series circuit (4S for 12V, 8S for 24V, or 16S for 48V), total current flows equally through every cell. If a single Grade B cell has higher internal resistance or lower capacity:

  1. Premature BMS Cutoffs: Under high discharge loads (like firing up an inverter, microwave, or A/C unit), the weak cell's voltage will sag rapidly. The moment it drops to the 2.50V cutoff, your BMS will trip offline—shutting down power to your entire system even if your remaining cells are sitting at 50% capacity.
  2. Endless Cell Drift: During recharging, that same weak cell will spike to the 3.65V high-voltage limit long before the rest of the pack is full. Your balancers will run continuously trying to compensate, locking you out of your bank's true storage capacity.
  3. Accelerated Pack Degradation: Subjecting a mismatched cell to recurring low/high cutoff thresholds accelerates thermal stress, causing it to degrade exponentially faster and shortening the operational life of the entire bank.

Complete 48V Home Energy Setup

Pre-matched 16-cell bundle ready for 5.12kWh 48V solar power walls and off-grid cabin storage.

  • 16x Matched 3.2V 100Ah Grade A Cells
  • Factory-matched capacity & low internal resistance
  • Includes hardware & busbars for easy assembly
View 16-Pack 100Ah Cells →

High-Capacity 304Ah Prismatic Cell

Massive single-cell capacity designed for high-demand RV, marine, and whole-home power systems.

  • 3.2V 304Ah true rated capacity
  • Heavy-duty terminals for minimal contact resistance
  • Ideal for space-optimized high-kWh banks
View 3.2V 304Ah Prismatic Cell →

Build Your System with Confidence

When you invest your time, labor, and budget into building a custom lithium storage system, starting with verified, high-quality cells is essential. B-grade cells might shave a few dollars off your initial invoice, but the resulting premature capacity fade, balancing headaches, and sudden BMS cutouts will cost you far more down the road.

Whether you are sizing out a compact auxiliary pack or engineering a high-capacity solar bank, choose pre-tested, factory-grade cells built to go the distance.

Ready to Start Your DIY Build?

Explore our complete catalog of verified 3.2V LiFePO4 prismatic cells, busbar hardware, and multi-cell packages.

Shop All 3.2V LiFePO4 Prismatic Cells →

Blackout Defense: Preparing Your Security Alarm System for Power Outages

sept 23, 2026 Publicado por: ExpertPower Insights AGM,  Battery Backup Systems,  Education,  Learning,  Safety,  Seal Lead Acid Batteries,  Sealed Lead Acid,  SLA
Blackout Defense: Preparing Your Security Alarm System for Power Outages

Severe storms, sudden grid spikes, or unexpected utility work can knock out neighborhood power in an instant. For most property owners, the blackout brings dark rooms, quiet appliances, and—within minutes—an annoying, persistent trouble beep from the alarm keypad.

When the grid goes dark, your property’s physical security shouldn’t go down with it. Blackouts are when properties are often at their most vulnerable.

Fortunately, intrusion alarms and fire panels don’t rely solely on wall electricity. Hidden inside that locked metal cabinet on the wall is a dedicated 12-volt backup battery designed to keep your sensors running. But how long can you actually expect that battery to last, what happens while it’s running, and is your current battery up to the task?

What Actually Happens to Your Alarm System When Power Drops?

Modern security systems are engineered with automatic failover. Under normal conditions, your system runs on standard household alternating current (AC) power supplied by a plug-in wall transformer, while simultaneously keeping the internal backup battery topped off.

The moment wall power is lost:

  • Instant Transition: The panel smoothly transfers the entire system over to the internal 12V battery with zero interruption. Your sensors never turn off, and your perimeter stays armed.
  • Keypad Alert: Most keypads chime or display an "AC Loss" or "No AC" indicator to let you know the system is now running on battery reserves.
  • Core Sensors Stay Live: Hardwired door and window contacts, glass-break sensors, and passive motion detectors continue drawing standby power directly from the battery.
  • Emergency Signals Still Transmit: If you have a modern cellular communicator installed, it uses the battery reserve to communicate arm/disarm events and alarms back to the monitoring station, even if internet routers and landlines are completely dead.

What Drains the Battery Faster?

Not every outage draws power at the same rate. Your backup battery will drain significantly faster if:

  • An alarm is triggered: Loud external sirens and strobe lights pull massive amounts of power compared to quiet standby monitoring.
  • Cellular signals are weak: During bad storms, cell towers can experience interference. Just like a smartphone battery drains quickly in low-service areas, an alarm’s cellular radio burns extra power attempting to stay connected to distant towers.
  • Bright displays stay on: Large, backlit touchscreen keypads naturally consume more power than traditional numeric push-button panels.

Battery Sizing Made Simple: Rules of Thumb

Instead of digging into complicated electrical formulas and load calculations, you can gauge your runtime expectations with a few simple rules of thumb based on your battery’s amp-hour (Ah) rating.

1. Small Residential Setups (12V 4Ah to 5Ah)

  • Best For: Apartments, condominiums, or smaller homes with just a few door contacts and a single standard keypad.
  • Outage Expectation: Designed primarily for short blips and overnight outages. Under normal conditions, expect roughly 8 to 14 hours of standby runtime.
  • Explore Options: Browse 12V 4Ah to 5Ah alarm battery replacements.

2. Standard Homes & Small Offices (12V 7Ah to 9Ah)

  • Best For: Typical single-family homes, multi-story residences, and small commercial storefronts. These systems usually power multiple keypads, several motion sensors, and an LTE cellular module.
  • Outage Expectation: Built to provide a solid full 24 hours of dependable standby coverage through typical day-long outages.
  • Explore Options: View compatible 12V 7Ah to 9Ah backup batteries.

3. Commercial Facilities & Fire Systems (12V 12Ah+ or Dual Batteries)

  • Best For: Larger facilities, warehouses, multi-zone commercial properties, or dedicated commercial fire panels that must comply with strict life-safety standards.
  • Outage Expectation: Delivers 24 to 48+ hours of extended standby runtimes to survive long holiday weekends or severe regional storm damage.
  • Explore Options: Find high-capacity 12V 12Ah+ and commercial alarm batteries.

Quick Tip — The Cabinet Check: Open your metal alarm panel cabinet and read the label on the existing battery. If you currently have a compact 12V 4.5Ah battery but notice empty space inside the cabinet, you can often physically upgrade to a standard 12V 7Ah or 8Ah battery for substantially longer runtime during an outage.

Lead-Acid vs. LiFePO4: How They Hold Up in a Real Blackout

Historically, virtually every alarm panel has run on a standard Sealed Lead-Acid (SLA) or AGM battery. Today, drop-in Lithium Iron Phosphate (LiFePO4) batteries are rapidly becoming the preferred alternative.

Traditional Sealed Lead-Acid (SLA)

  • The Pros: Readily available, inexpensive upfront cost, and reliable for standard day-to-day trickle charging.
  • The Outage Vulnerability: Lead-acid chemistry struggles with deep discharges. If an extended storm drains a lead battery down past 50% capacity, its voltage drops sharply, which can cause the panel to shut off prematurely. Worse, if an SLA battery is completely drained flat over a multi-day blackout, internal damage (sulfation) permanently degrades its lifespan—meaning it may never hold a full charge again once power returns.

Lithium Iron Phosphate (LiFePO4)

  • The Upgrade: Modern 12V LiFePO4 drop-in replacements share the exact same physical dimensions and terminal connectors as legacy SLA batteries, making replacement seamless.
  • The Outage Advantage: LiFePO4 batteries deliver rock-steady voltage from 100% all the way down to nearly empty, keeping your sensors and cellular radios fully operational right up to the end. They can be deeply discharged without damaging the internal cells, recover cleanly once utility power is restored, and last 8 to 10+ years—more than double the lifespan of traditional lead-acid batteries.
Feature Standard Sealed Lead-Acid (SLA) Upgraded Lithium (LiFePO4)
Initial Cost Budget-friendly upfront Slightly higher initial investment
Outage Usability Loses voltage rapidly as it drains Consistent, flat power output until depleted
Deep Drain Recovery Can permanently damage battery health Recovers cleanly with built-in protection
Typical Lifespan 3 to 4 years 8 to 10+ years
Maintenance Profile Regular replacements & trouble beeps "Set-and-forget" long-term peace of mind

3-Step Outage Readiness Checklist

  1. Check the Date Sticker: Sealed lead-acid batteries have an average service life of 3 to 5 years. If your battery’s date code shows it was installed more than 3 or 4 years ago, treat it as living on borrowed time and replace it before a storm tests it for you.
  2. Inspect the Physical Case: Unplug the battery and inspect the plastic housing. Look for white, chalky corrosion around the terminal tabs or any swelling and bulging on the sides. If the battery is warped or corroded, replace and recycle it immediately.
  3. Don’t Ignore the Keypad Chime: A panel that beeps every few hours with a "Low Batt" trouble code isn't crying wolf. Silencing the buzzer doesn't fix the battery; it just means the next power flicker could take your entire security system offline.

Stay Protected, Even When the Grid Fails

An alarm system is only as dependable as the reserve battery keeping it alive. Don't wait for the next severe storm or rolling blackout to find out your backup power is depleted.

Whether you need a direct-fit Sealed Lead-Acid replacement for routine maintenance or an ultra-durable LiFePO4 battery for long-term peace of mind, make sure your security system is storm-ready today.

Shop All Alarm & Security System Battery Replacements →
