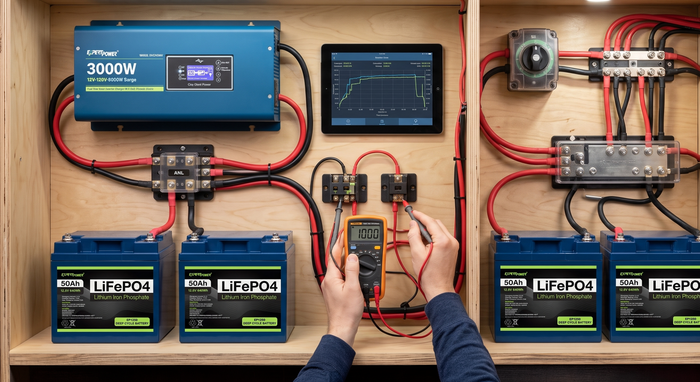

Preventing System Failures: Wire Gauge, Fusing, and Voltage Drop Calculations Explained

Preventing System Failures: Wire Gauge, Fusing, and Voltage Drop Calculations Explained

You can invest in top-tier lithium batteries and high-efficiency solar panels, but your entire electrical system is only as strong as its weakest connection. Undersized wiring and improper fusing are the leading causes of mysterious voltage drops, degraded equipment performance, and catastrophic electrical fires in off-grid, RV, and marine power builds. When an electrical setup fails, it rarely starts with the expensive end devices—it starts in the copper connecting it all together.

In this guide, we will demystify American Wire Gauge (AWG), break down voltage drop math without the headache, and clarify exactly when and where to use specific fuses to keep your system safe, efficient, and reliable.

Part 1: The Core Principles of Wire Sizing (Ampacity)

Before running cables across a vehicle or off-grid structure, it is critical to understand how electricity behaves inside a conductor and how physical parameters dictate safety margins.

What is Ampacity?

Ampacity is defined as the maximum continuous current-carrying capacity (in amperes) of a conductor before taking thermal damage or exceeding its insulation temperature rating. Every wire presents natural internal resistance to electrical flow. As current overcomes that resistance, power is converted directly into heat.

The Thermal Feedback Loop
Forcing excessive current through a conductor that lacks sufficient cross-sectional area generates rapid thermal buildup. Over time, heat degrades insulation, potentially resulting in short circuits or electrical fires.

The Voltage Factor

A common misconception in power system design is why low-voltage 12V systems require massive, heavy cables compared to higher-voltage setups carrying the exact same power. Power output is governed by the basic formula P = V × I (or W = V × A).

To deliver a continuous 1,200 Watt load across different system voltages:

  • At 12V DC: You must transfer 1200W / 12V = 100 Amps
  • At 24V DC: You must transfer 1200W / 24V = 50 Amps
  • At 48V DC: You must transfer 1200W / 48V = 25 Amps

Because resistive heat generation in a conductor increases with the square of current (Ploss = I2R), lower-voltage systems demand exponentially thicker conductors to move identical power loads safely.

Material Matters: Tinned Copper vs. Alternatives

The chemical composition and physical manufacturing of wiring heavily impact system longevity and performance:

  • Marine-Grade Tinned Copper (BC-5W2): Individual fine strands of pure copper are electroplated with tin. This provides exceptional resistance to oxidation and galvanic corrosion while maintaining high flexibility for tight runs.
  • Bare Building Copper (e.g., THHN): Typically solid or coarse-stranded copper designed for residential AC applications. It lacks vibration resistance and corrodes rapidly in damp environments.
  • Copper-Clad Aluminum (CCA): An aluminum core clad in a thin copper shell. Avoid CCA entirely in DC power systems. CCA possesses roughly 40% higher resistance than pure copper, fractures easily under vibration, and poses elevated thermal risks.

Part 2: Conquering the Voltage Drop Equation

Understanding Resistance Over Distance

Voltage drop represents loss of electrical potential between the power source and the load caused by wire resistance. If a battery bank outputs 13.2V at the terminals, but an inverter receives only 11.8V under load, the 1.4V difference is dissipated along the wiring as waste heat.

The Round-Trip Rule

When calculating circuit length, you must account for the entire current path: the positive wire run from source to load plus the negative return wire back to the source.

[ BATTERY (+) ] ════════ 10 Feet Positive ════════> [ LOAD ] [ BATTERY (-) ] <════════ 10 Feet Negative ═════════ [ LOAD ] Total Circuit Length = 20 Feet (Round-Trip)

Acceptable Thresholds

Threshold Application Type Engineering Justification
3% or Less Critical Loads (Inverters, Battery Chargers, Solar Controllers, Refrigerators) Prevents premature low-voltage inverter cutoffs and ensures maximum battery charge voltage accuracy.
10% or Less Non-Critical Loads (LED Lighting, General Fans, Cabin Water Pumps) Maintains basic functionality where minor efficiency losses do not impact system safety or operation.

Practical Calculation Example

Suppose we need to size a cable for a 12V DC circuit powering a continuous 50 Amp load across a 10-foot physical distance (20-foot round-trip) with a maximum allowable voltage drop of 3%.

Maximum allowable drop: 12V × 0.03 = 0.36V.

Using the standard DC conductor resistance calculation:

Resistance / 1,000 ft = ( Target Drop [V] / ( Amps × Total Distance [ft] ) ) × 1,000

Resistance / 1,000 ft = ( 0.36 / ( 50 × 20 ) ) × 1,000 = 0.36 Ω / 1,000 ft

Evaluating standard American Wire Gauge (AWG) resistance tables:

  • 8 AWG: ~0.64 Ω / 1,000 ft → Causes a 5.3% drop (Unacceptable)
  • 6 AWG: ~0.40 Ω / 1,000 ft → Causes a 3.3% drop (Borderline)
  • 4 AWG: ~0.25 Ω / 1,000 ft → Causes a 2.1% drop (Optimal & Safe)

Part 3: Choosing the Right Fuse Type for the Job

Core Principle of Fusing
Fuses are installed strictly to protect the WIRING from thermal breakdown and fire—not to safeguard internal electronics of connected appliances.

Comparing Primary Fuse Form Factors

1. MRBF (Marine Rated Battery Fuse)

MRBF fuses screw directly onto battery terminals or threaded posts. They offer compact installation and eliminate unprotected cable segments between the battery terminal and external fuse blocks.

2. ANL Fuses

ANL fuses feature a bolt-in blade design suited for medium-to-heavy DC distribution channels, charge controllers, and mid-sized inverters. They provide easy visual inspection and robust physical mounting.

3. Class T Fuses

Class T fuses are fast-acting, high-interrupt ceramic fuses essential for high-capacity Lithium (LiFePO4) battery banks. Lithium chemistries can deliver short-circuit discharge currents exceeding 10,000 Amps.

Standard fuses can suffer from arc-over—where intense current vaporizes the internal element into a conductive plasma bridge, allowing current to flow continuously despite a blown fuse. Class T fuses feature a high Amperage Interrupt Capacity (AIC) of up to 20,000A at 125V DC, extinguishing high-energy arcs safely.

Part 4: Golden Rules of Fuse Placement

1. The "Within 7 Inches" Rule

Position primary circuit fuses as close to the positive power source as physically possible—ideally within 7 inches of the terminal connection (per ABYC standards). Any length of unfused wire between the terminal and fuse holder represents an unmonitored dead-short risk.

[ BATTERY (+) ] ─── ( Max 7 Inches ) ─── [ FUSE ] ═════════════════> [ DISTRIBUTION ]

2. Upstream Protection

Always place main fuses upstream of switches, disconnects, and distribution blocks. Every junction point, mechanical contact, or terminal lug introduces potential mechanical failure points that require upstream short-circuit protection.

3. Matching Fuse Rating to Conductor Ampacity

Select a fuse rating that is lower than or equal to the continuous ampacity rating of the protected cable, but higher than the continuous operating current of the connected load.

Example: A circuit operating a 40A continuous load wired with 8 AWG marine wire (rated for ~80A continuous):

  • Incorrect: 100A Fuse (Wire insulation melts prior to fuse trip during overload).
  • Correct: 50A or 60A Fuse (Protects cable while preventing nuisance trips).

Summary Checklist

  • Determine Continuous Load: Calculate total sustained amperage draw for the circuit.
  • Calculate Round-Trip Distance: Measure out-and-back conductor distance in feet.
  • Select AWG for Voltage Drop: Verify voltage drop remains ≤ 3% for critical feeds or ≤ 10% for non-critical loads.
  • Mount Fuse Near Source: Install main fuses within 7 inches of battery positive terminals or main busbars.
  • Verify Interrupt Capacity: Ensure lithium battery main feeds use high-AIC Class T fuses.
  • Align Fuse to Wire Rating: Confirm fuse rating does not exceed wire ampacity limits.

Inspect Your Build Today

Taking time to audit wire gauges, resistance drop calculations, and fuse interrupt ratings prevents costly hardware failures and hazards. Have questions about sizing your next inverter feed or solar array? Review your layout carefully and verify all wire runs prior to commissioning.

The Science of Battery Longevity: "Cycle Life" vs. Calendar Aging in LiFePO4

The Science of Battery Longevity: "Cycle Life" vs. Calendar Aging in LiFePO4

When shopping for LiFePO4 (Lithium Iron Phosphate) batteries, you are almost always confronted with a dazzling number: "Lasts 10 Times Longer Than Lead-Acid!" or "5,000+ Deep Cycles!"

This "5,000 cycles" metric—known as Cycle Life—is the industry gold standard for performance. It’s an easy, impressive number. But it’s only half the story. The chemical reality is that your battery has *two* life expectancies, and the second one, Calendar Aging, may be far more critical to your investment.

To guarantee your LiFePO4 battery hits that coveted 10-year mark, you have to move beyond the marketing pitch and understand the technical and chemical reality of how these cells actually degrade.

The Dual Lifespans of LiFePO4

A lithium battery is a dynamic chemical reactor. It is always degrading, but it does so in two distinct ways:

  1. Cycle Life (Active Aging): This is the degradation that occurs when you physically charge and discharge the battery. Every time lithium ions travel between the cathode (positive) and the anode (negative), they wear down the physical structure of the cell. Think of this as the *mileage on your car.*
  2. Calendar Aging (Passive Aging): This is the degradation that occurs *regardless* of whether you use the battery or not. As soon as a lithium cell is manufactured, a clock starts ticking. Chemical reactions inside the cell proceed slowly over time, consuming the lithium ions and electrolyte that the battery needs to function. Think of this as the *age of the car’s engine—even if it’s been parked in a garage for years.*

The definitive guide to your battery’s lifespan requires balancing these two factors. In most real-world applications (RVs, seasonal cabins, and marine deep-cycle use), Calendar Aging is the dominant factor that will determine the battery's ultimate life.

The Chemistry of Degradation: Meet the SEI Layer

To understand why a parked lithium battery still ages, you have to look microscopic.

Inside every new LiFePO4 cell, a critical chemical structure forms on the anode during its very first charge: the Solid Electrolyte Interphase (SEI) Layer. This nanometer-thin passivating layer acts as a protective shield. It allows lithium ions to pass through while preventing the raw carbon anode from reacting with the volatile liquid electrolyte.

The health of the SEI layer dictates the health of the battery.

Cycle degradation (active): Each deep discharge cycle (going from 100% to 0%) causes the anode particle to slightly expand and contract. This microscopic physical movement can crack and rupture the SEI layer. The BMS then has to use up fresh, active lithium and electrolyte to "repair" the crack, permanently reducing the battery’s capacity. Over thousands of cycles, this structure slowly disintegrates.

Calendar degradation (passive): The SEI layer is not a perfect shield. It is slightly permeable. Even when the battery is idle, electrolyte molecules slowly seep through and react, causing the SEI layer to grow thicker over time. This thickening acts like plaque in an artery: it consumes precious active lithium, reduces the surface area available for current flow, and drastically increases the battery's internal resistance. This increase in resistance is why aged batteries can’t hold a stable voltage under load.

The Key to Calendar Longevity: Storage State of Charge (SoC)

This is the single most misunderstood concept in lithium battery management. While you might be tempted to "top off" your battery to 100% before parking it for the season, storing a LiFePO4 battery at 100% SoC is the worst thing you can do for its calendar life.

Storing at 100% SoC: High Voltage Accelerates Degradation

Storing a LiFePO4 cell at 100% SoC puts it into a high-voltage, high-stress chemical environment (typically ~3.60V to 3.65V per cell, or 14.4V+ for the pack).

At this high potential, the rate of passive chemical degradation increases exponentially.

  • Accelerated SEI Thickening: The high voltage pushes more electrolyte particles through the protective SEI shield, causing it to thicken rapidly, locking up lithium ions and increasing resistance.
  • Electrolyte Oxidation: The liquid electrolyte itself begins to oxidize and break down faster at high voltages, creating side products that foul the internal battery chemistry.

Chemically, a fully charged cell is like a tightly compressed spring—it desperately wants to return to a lower energy state.

Storing at 0% SoC: The Low Voltage Cutoff Trap

Storing at 0% is equally dangerous, but for a different reason. While chemical stress is very low, the problem is Parasitic Load.

Every LiFePO4 battery has an internal brain—the BMS—that draws a minuscule amount of current even when the battery is idle. Over many months, this parasitic draw can pull the cell voltage below the critical emergency cutoff point (e.g., below 2.0V per cell).

Once a cell voltage drops this low, the copper busbars inside the cell can dissolve into the electrolyte. When you try to recharge the battery later, this dissolved copper precipitates back as dangerous microscopic "spikes" called dendrites, which can pierce the separator and cause a localized short circuit.

A cell that has "sat at 0V" for months is often chemically compromised and must be handled with extreme caution.

The Definitive Off-Season Storage Guide (The 10-Year Promise)

If you use your LiFePO4 battery aggressively and deeply discharge it every single day, you may achieve 5,000+ cycles in 6–8 years before the active material is exhausted.

But if you are a seasonal user, your goal is to manage Calendar Aging to ensure your battery reaches its mechanical potential. Follow this guide to hit that 10-year mark.

Step 1: Aim for 50% SoC (The Chemical Sweet Spot)

For long-term storage (months or seasons), you must target the chemical state that minimizes stress. The chemical sweet spot for LiFePO4 calendar aging is approximately 50% to 60% State of Charge.

This SoC offers the best compromise:

  • The overall voltage potential is low (around 3.25V per cell, or 13.0V for a 12V pack), minimizing stress on the SEI layer and electrolyte oxidation.
  • The chemistry is stable and relaxed.

*A battery stored at 50% will degrade chemically at a fraction of the rate of a battery stored at 100%.*

Step 2: Cool and Dry Storage Environment

A second crucial factor for chemical reaction speed is temperature. Just as food lasts longer in a refrigerator, a battery’s parasitic chemical reactions slow down significantly in cooler temperatures.

  • Target Temperature: Store the battery in a cool, dry place, ideally between 5°C and 20°C (41°F and 68°F).
  • The Freeze Factor: While it is okay to store a *sleeping* LiFePO4 battery below freezing, you must never attempt to charge it below 0°C (32°F). Charging in freezing temps causes immediate, catastrophic lithium plating. A smart BMS is designed to prevent this, but storing it in a warmer place avoids the risk entirely.

Step 3: Complete Isolation

You must treat parasitic load as a long-term threat. You cannot rely on a master switch inside an RV or cabin, as hidden safety sensors (CO detectors, propane monitors) often draw power.

  1. Physically Disconnect: For off-season storage, completely disconnect the battery cables from the terminals. This ensures 0.00 Amps of external load.
  2. Rely on the BMS: The BMS will still have a tiny parasitic load of its own.

Step 4: The 6-Month Maintenance Pulse

Even a perfectly stored, disconnected battery at 50% SoC must be maintained.

  1. Set a reminder for every six months.
  2. Top-Off and Pulse: Connect the battery to a LiFePO4-specific charger and let it achieve 100% SoC. This does three critical things:
    • It wakes up the BMS and verifies it is functional.
    • It replenishes any internal self-discharge or BMS parasitic draw, preventing the battery from entering the 0V trap.
    • It allows the BMS to properly Balance the Cells (balancing only occurs during the final phase of a charge to 14.4V+).
  3. Discharge Back to 50%: Once the charge and balance are complete, use a small load (like a 12V bulb or fan) to discharge the battery back down to 50% SoC before returning it to the cool storage location.

Conclusion

The active "cycle life" of 5,000+ cycles gets the headlines. But in almost all real-world applications, your battery’s fate is determined by the quieter, slow chemical process of Calendar Aging.

By understanding that storage State of Charge and temperature are the master controls for passive degradation, you can move past the 5-cycle count obsession. By managing the chemical stress on your battery when it is parked, you are guaranteed that your 10-year investment will be ready to perform when the off-season ends.

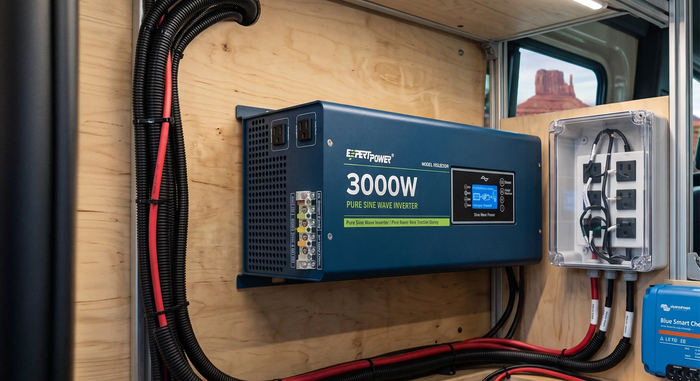

The Danger of "Dirty" Power: Why Pure Sine Wave Inverters Matter for Sensitive Electronics

The Danger of "Dirty" Power: Why Pure Sine Wave Inverters Matter for Sensitive Electronics

Whether you are building out an off-grid overland rig, configuring an emergency home backup kit, or setting up a mobile office as a digital nomad, an inverter is the heartbeat of your system. It takes the Direct Current (DC) stored in your LiFePO4 batteries and transforms it into the Alternating Current (AC) required to run everyday household appliances. Depending on your power needs, this could range from a compact 12V 2KW inverter charger for daily devices to a high-capacity 12V 3KW system for heavier appliance loads.

However, not all inverters transform this power the same way.

If you are shopping for an inverter, you have likely come across two distinct options: Modified Sine Wave and Pure Sine Wave. While modified sine wave inverters are often cheaper upfront, they provide what engineers call "dirty" power—a choice that can ultimately damage, degrade, or destroy your most sensitive electronics.

Here is a deep dive into the science behind AC power waves, why modified waves pose a threat to your gear, and why a Pure Sine Wave inverter is a non-negotiable investment for modern electronics.


Understanding the Waveforms: Smooth vs. Stepped

To understand why modified sine wave power is risky, we have to look at the geometry of electrical currents.

  • Pure Sine Wave: The electricity provided by the utility grid (the outlets in your home) flows in a perfectly smooth, continuous, looping wave. The voltage rises and falls seamlessly, transitioning smoothly between positive and negative polarity.
  • Modified Sine Wave: Rather than creating a smooth curve, a modified sine wave inverter approximates a wave by creating a jagged, staircase-like pattern. The voltage jumps abruptly up, pauses, drops straight down past zero, pauses, and jumps back down.

While a modified sine wave technically alternates current, those instantaneous, harsh voltage jumps are what we call "dirty" power.

Why "Dirty" Power Damages Sensitive Equipment

Simple appliances that rely purely on resistance or basic motors—like an old incandescent lightbulb, a basic space heater, or a simple toaster—don't care about the shape of the wave. They will eat up modified sine wave power just fine.

However, modern high-end equipment operates on entirely different internal architecture. Here is how dirty power actively harms three major categories of sensitive devices:

  1. Laptops, Smartphones, and Digital Gear

    Your laptop or camera battery charger doesn’t run directly on AC power. It uses a switched-mode power supply (SMPS) to convert that AC power back down into smooth DC power for the internal battery.

    The Risk: The abrupt "steps" of a modified sine wave cause the capacitors and rectifiers inside your laptop charger to work significantly harder to smooth out the jagged incoming voltage. This generates intense excess heat. Over time, this heat degrades the components inside your power brick, leading to premature failure, random device resets, or a completely fried charger.

  2. CPAP Machines and Medical Equipment

    For off-grid campers or those facing a home power outage, keeping a CPAP machine running smoothly is a matter of health and safety. When managing critical medical equipment during an outage, many homeowners rely on a heavy-duty emergency backup like a 48V 6.5KW Hybrid Solar Inverter to ensure uninterrupted, clean power.

    The Risk: CPAP machines rely on highly sensitive microprocessors to time your breathing and regulate pressure, alongside precise internal motors. Modified sine waves cause severe electrical interference. This can cause the CPAP motor to run incredibly hot, produce a loud, alarming "humming" or buzzing sound, or cause the digital control screen to glitch and malfunction mid-sleep. Many CPAP manufacturers will completely void your warranty if the device is plugged into a modified sine wave inverter.

  3. High-End Power Tools and Variable Speed Motors

    If you are running a mobile workshop or using power tools on a job site, the type of inverter you use dictates how long your tools will last. High-demand industrial tools and entire job sites often require massive, clean power distribution, which is where a robust commercial system like a 48V 10KW Hybrid Solar Inverter becomes essential.

    The Risk: Tools that utilize variable-speed controls, digital timers, or brushless motors rely on the smooth transition of a pure sine wave to calculate timing and speed. When fed a jagged modified wave, these motors experience "harmonic distortion." The motor struggles to sync with the erratic wave, leading to a massive loss in torque, excessive heat buildup, and a severely shortened lifespan for the tool's motor.

Signs You Are Using a Modified Sine Wave Inverter

If you already have an inverter setup and aren't sure what type it is, your electronics will usually tell you. Look out for these telltale warning signs:

  • Audio Buzzing: Audio equipment, radios, and amplifiers will produce a persistent, annoying 60Hz buzz or hum through the speakers.
  • Visual Static: Old monitors or portable TVs will show rolling lines or static across the screen.
  • Overheating Overtime: Your device chargers or the appliances themselves feel unusually hot to the touch within just 15–20 minutes of operation.

The Pure Sine Wave Solution: Ultimate Protection for Your Gear

At ExpertPower, we design our power solutions to match the premium reliability of our LiFePO4 batteries. That is why our advanced inverter lines are exclusively Pure Sine Wave.

By investing in a Pure Sine Wave inverter, you are providing your equipment with power that is actually cleaner and more consistent than what comes out of many standard wall outlets.

The benefits are clear:

  • Maximum Efficiency: Your devices run cooler, draw less power from your battery bank, and operate exactly as the manufacturer intended.
  • Whisper-Quiet Operation: Eliminates the electrical hum and buzzing in audio systems, CPAP machines, and fans.
  • Total Peace of Mind: You can safely plug in thousands of dollars worth of laptops, medical gear, drones, and smart appliances without worrying about permanent component degradation.

Conclusion

When building an off-grid or backup power system, it is tempting to cut corners on the inverter to save a few bucks. But when you look at the cost of replacing a fried MacBook, a damaged CPAP machine, or a burned-out power tool, saving money on a modified sine wave inverter becomes a very expensive gamble.

Pairing your ultra-reliable ExpertPower lithium battery bank with a Pure Sine Wave inverter ensures that every watt of energy leaving your system is safe, stable, and perfectly optimized for the technology you rely on most.

Explore our lineup of ExpertPower Pure Sine Wave Inverters and power kits today to ensure your sensitive gear stays protected wherever your journey takes you.
