200W | 50Ah


  • Details
  • Description
  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

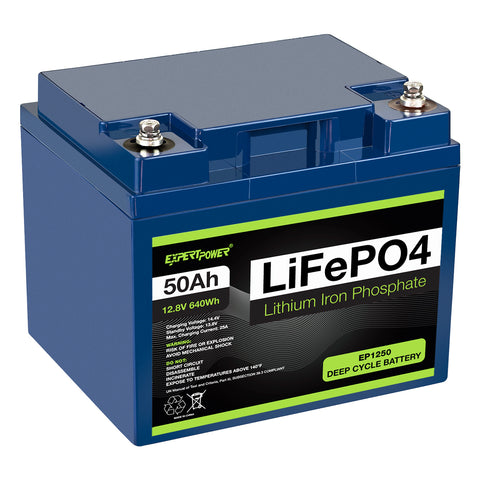

This Off-Grid Solar System Kit includes one 12V50Ah LiFePO4 battery, two100W Solar Panels and one 20A MPPT Solar Charge Controller.

It is perfect for installation on an RV, boat, or camper and helps buying and setting up a complete off-grid solar kit simple, quick and easy. The Off-Grid Solar System Kit is ideal for a power system that requires high versatility. The 50Ah battery provides 640Wh worth of backup power, smart and powerful enough to take full advantage of the battery's 50A discharge current and complimented with two 100W solar panels that can generate up to 8-10A worth of charging current for the batteries, keeping you up and running indefinitely.
Save 0 %
200W | 50Ah

$669.99$599.99

  • Details
  • Description
  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

This Off-Grid Solar System Kit includes one 12V50Ah LiFePO4 battery, two100W Solar Panels and one 20A MPPT Solar Charge Controller.

It is perfect for installation on an RV, boat, or camper and helps buying and setting up a complete off-grid solar kit simple, quick and easy. The Off-Grid Solar System Kit is ideal for a power system that requires high versatility. The 50Ah battery provides 640Wh worth of backup power, smart and powerful enough to take full advantage of the battery's 50A discharge current and complimented with two 100W solar panels that can generate up to 8-10A worth of charging current for the batteries, keeping you up and running indefinitely.
SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Kit Includes


specifications

  • 12V 50Ah LiFePO4 Battery
    Battery
  • 100W Solar Panel
    Solar Panel
  • 20A MPPT Solar Charge Controller
    Controller
  • Bluetooth Module BT-1
    Bluetooth

DIMENSIONS

Length

Weight

7.1 in

3.03 in

Height

Height w/ Terminals

6.6 in

6.8 in


DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

LiFePO4

12.8V

14.4V

≥ 20Ah (25°C , 0.2°C)

F13/M5

Weight

BCI Group Size

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


5 Lbs

12 Months at 77˚F





2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F

Max. Discharge Current:

Continue Discharge

Permanent Discharge

20A

45A 2Sec.

Max. Charge Current:

Continue Charge

20A

Weight

BCI Group Size

Storage Duration







Life Cycles




Operating Temperature


5 Lbs

12 Months at 77˚F





2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F


WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

1 Year


PHYSICAL DETAILS

Dimensions

Weight

35.43 x 22.83 x 1.18 in

12.6 Lbs

Cells

Connections

Monocrystalline solar cells

PV


INTERNAL SPECS

Rated Voltage [Vmpp]
Rated Current [Impp]
Open Circuit Voltage [Voc]

Short Circuit Current [Isc]

Max Series Fuse Rating

18.81V

5.32A

22.2V

5.6A

15A

Power Temp Coefficient

Voltage Temp Coefficient

Current Temp Coefficient

Max. System Voltage

–0.45% / °C

-0.37% / °C

0.1% / °C

1000VDC


WARRANTY / CERTIFICATIONS

Certification

UL

Warranty

1 Year


PHYSICAL DETAILS

Dimensions

Weight

8 x 5.6 x 2.5 in

2.4 Lbs

Terminals

Battery Compatibility
Battery Compatibility

Up to #8AWG

SLA, Flooded, Gel, AGM, LiFePo4


INTERNAL SPECS

Nominal Voltage

Rated Charge Current

Max. PV Input Voltage

Self-Consumption

12/24V Auto Recognition

20A

100V

≤10mA

Enclosure

Temp. Compensation


Temperature Ranges


IP32

-3mV/℃/2V

Operational:  -31°F — 113°F


Storage:        -31°F — 176˚F


WARRANTY / CERTIFICATIONS

Certification

CE / EMC Certifications

Warranty

1 Year

This Bluetooth Module is compatible with our MPPT Solar Charge Controllers with the connection on the component's RS232 communication port, wirelessly check and adjust your system's parameters through the DC Home App (available with the Apple and Android phones)

Compatible MPPT Solar Charge Controller:

SCSMPPT20L - 20A MPPT
SCSMPPT30L - 30A MPPT
SCSMPPT60L - 60A MPPT
