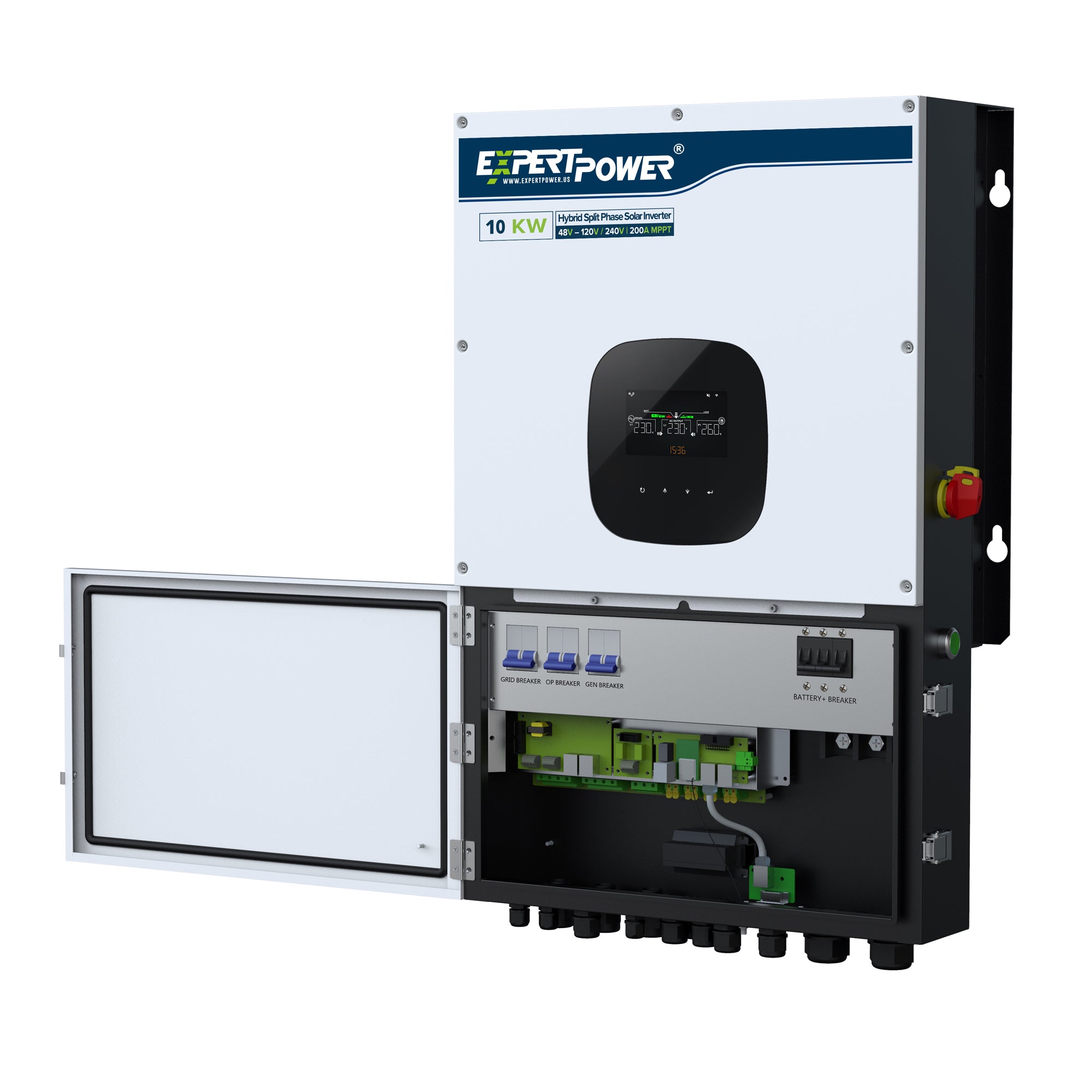

IVV48V10KW
Expert Power's Hybrid Solar Inverter features a built-in 12KW MPPT solar charger & 200A utility battery charger for optimal charging. Supports two 6000W PV inputs, each up to 600V Voc from panels. This dual-input capability boosts flexibility and efficiency in solar energy collection. Provides 10KW rated (20KW surge) output, compatible with 120/208/240Vac.
Remote Type
Have Questions? Call us now:
Shipping
We use Priority and Ground services on all shipments within the contiguous United States unless otherwise noted or an expedited option is selected by the customer. Please allow 1 business day for processing and an additional 1-6 business days for your order to arrive based on your location and products ordered. For more information please refer to our compete Shipping Policy Page.
Returns & Exchanges
You can return your item within 90 days of purchase for a refund. All you need to do to start a return is contact us through your preferred channel and provide us your order number. Please refer to our Return and Exchange Guidelines for more information.
Warranty
All ExpertPower LiFePO4 batteries are covered by ExpertPower's 2-Year Warranty (except the PRO Series and EP48100). For further details, please refer to Lithium Battery Warranty Information.
Overview
Specifications
Reviews
Reliable Hybrid Power, Built Safe & Tough Integrated circuit breakers, rapid shutdown & AFCI meet safety codes. Durable IP65 waterproof build allows outdoor installation.
Integrated circuit breakers, rapid shutdown & AFCI meet safety codes. Durable IP65 waterproof build allows outdoor installation.

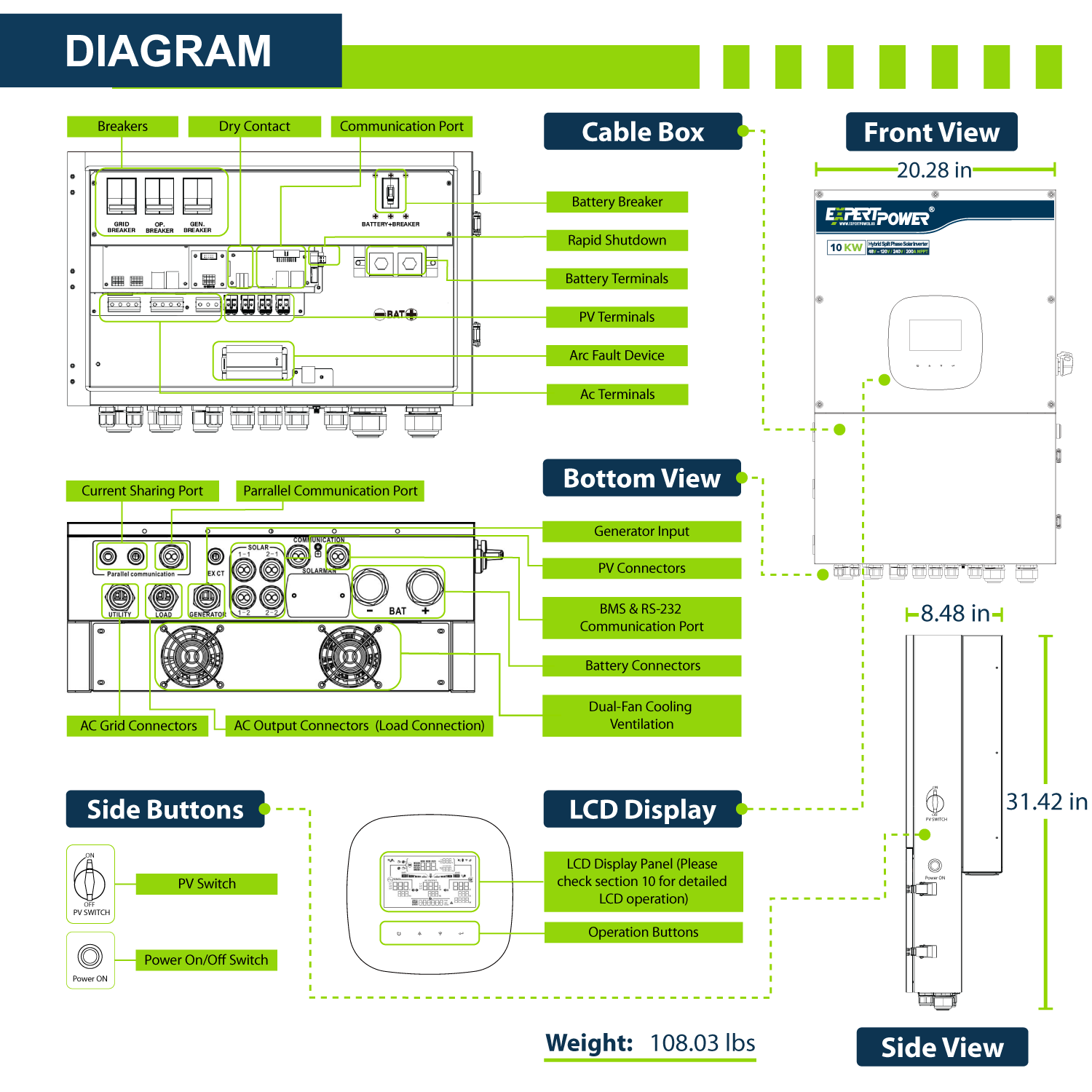

Weight
108 Lbs
Length
20.3 In
Width
8.5 in
Height
31.4 In
Certification
UL, CE, DOT, & ISO
2 Year
Rated Power
10000W
Input AC Voltage
85-140VAC Per Phase
Input DC Voltage
48VDC / 51.2VDC
Output AC Voltage
120VAC / 208VAC / 240VAC
Output Surge Power
20000W
Efficiency
91%
Waveform
Pure Sine Wave
Protections
PV Rapid Shutdown, PV Arc Fault, PV Lightning, PV DC Switch, Ground Fault Detection
Type & Max. PV Array Power
MPPT 12000W (6000W X 2)
Max. PV Open Circuit Voltage
600VDC
Max. PV Input Current
18A x 2
PV Start-Up Voltage
125VDC
Max. Solar Charge Current
200A
Max. AC Charge Current
Max. Charge Current
120A
Product Manual
Download
Installation Requirements
View
Full Spec Sheet
