Home > All > 48V 100Ah LiFePO4 - EP48100

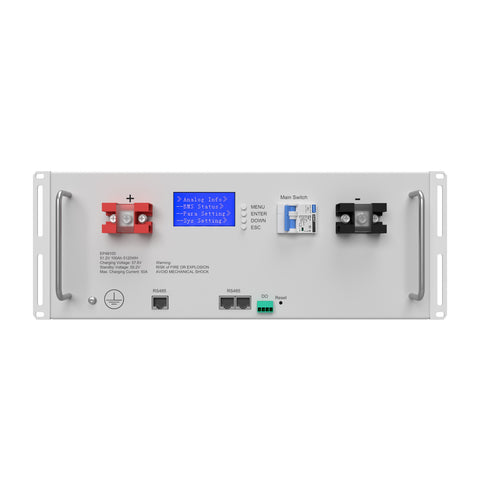

48V 100Ah LiFePO4 - EP48100


Sale Off
48V 100Ah LiFePO4 - EP48100

$2,399.99$1,249.99

  • Details
  • Summary
  • Reviews
  • Lithium Technology

    Flat discharge curve holds above 48V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

ExpertPower 48V 100Ah Lithium LiFePO4 Deep Cycle Rechargeable Battery

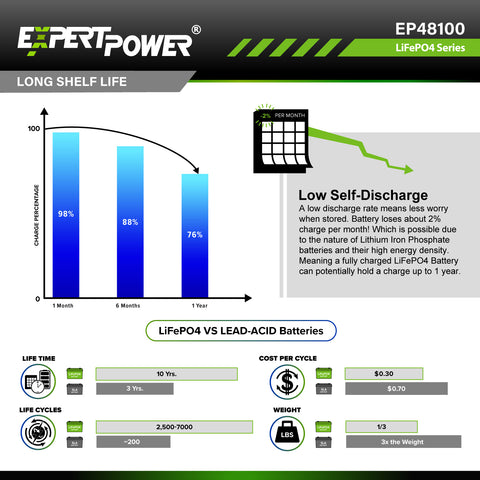

  • Longer Service Life: Our LiFePO4 battery provides 2500 - 7000 cycles & a 10 years lifetime compared to 200 - 500 cycles & a 3 years lifetime in typical Lead Acid chemistry.
  • Efficient Power: Our LiFePO4 battery’s flat discharge curve holds above 48V for up to 95% of its capacity usage providing astronomical boosts in run-time compared to only 50% in Lead Acid.
  • Impeccably Lightweight: Our LiFePO4 battery is only a 1/3 of the weight of Lead Acid which makes it the disputable choice for RVs, Marine and Off-Grid Applications when towing or mobility is in the consideration.
  • Complete Protection: The lithium battery’s unique built-in Battery Management System (BMS) protects it from overcharge, deep discharge, overloading, overheating and short circuit, and excessive low self-discharge rate ensuring up to 1-year maintenance-free storage.
  • Ironclad Protection: A steel-hardened, gray cast iron case provides significant improvements in protection against structural affects versus a typical plastic case that can have its integrity and functionality compromised by excessive heat and mechanical shock during a typical service-life.
  • 4 in 1 Wiring: The all-purpose PCB regulates current and voltage fluctuation without the need of external balances or additional BMS protections making the battery smart and powerful enough to be utilized in a system of up to 10 batteries in parallel.

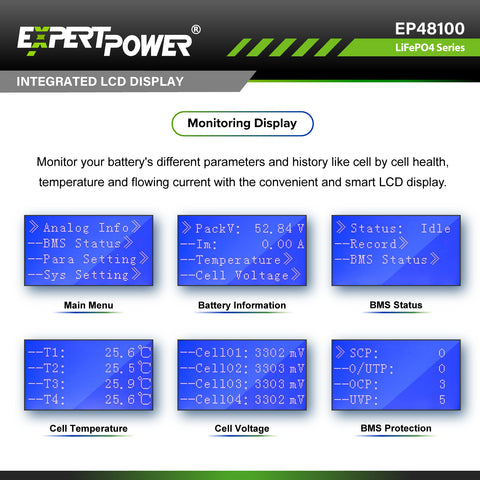

  • Streamlined Visual Assessments: Sophisticated monitoring software provides on-demand information for battery health, cell health, BMS protections, regulatory temperature status, and cell balancing leaving peace of mind and confidence in your system.
  • Built-in low-temp cut off prevents charging under 23 °F (-5 °C)



SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS

Sale Off
48V 100Ah LiFePO4 - EP48100

Voltage

48V


CAPACITY

100Ah


TERMINAL TYPE

M6


Weight

97 Lbs


DIMENSIONS

19 x 18.9 x 7 In


LIFE TIME

>10 Years


Voltage

48V


CAPACITY

100Ah


TERMINAL TYPE

M6


Weight

97 Lbs


DIMENSIONS

19 x 18.9 x 7 In


RECOMMENDED CHARGER


Voltage

48V


CAPACITY

100Ah


TERMINAL TYPE

M6


Weight

97 Lbs


DIMENSIONS

19 x 18.9 x 7 In


RECOMMENDED CHARGER


Additional Features


specifications


DIMENSIONS

Length

Width

19 in

18.9 in

Height

Height w/ Terminals

7 In


DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

LiFePO4

51.2v

57±0.2v

100Ah (25°C , 0.2°C)

M6

Max. Discharge Current:

Continue Discharge

Permanent Discharge

100A

110A 10Sec.

Max. Charge Current:

Continue Charge

50A

Weight

BCI Group Size

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


97 Lbs

12 Months at 77˚F

840140939149

LBXLFP48_100

3000 with 100% DOD with 100% DOD


4000 with 80% DOD with 80% DOD


8000 with 50% DOD with 50% DOD

Discharge:  -22 - 131°F



Charge:  23 - 131°F


WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

1 Year
