Home / Collections / All / 200W | 40A

200W | 40A


  • Details
  • Description
  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

This Off-Grid Solar System Kit includes one 200W Monocrystalline Solar Panel and one 40A MPPT Solar Charge Controller with Bluetooth Adapter, one pair 10ft 12AWG Solar Cables, one pair 6ft 12AWG Battery Cables, one set of Solar Panel Mounting Brackets.

It is perfect for installation on the small solar project helps to buy and set up a complete off-grid solar kit simple, quick and easy.
Save 0 %
200W | 40A

$0.00$459.99

  • Details
  • Description
  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

This Off-Grid Solar System Kit includes one 200W Monocrystalline Solar Panel and one 40A MPPT Solar Charge Controller with Bluetooth Adapter, one pair 10ft 12AWG Solar Cables, one pair 6ft 12AWG Battery Cables, one set of Solar Panel Mounting Brackets.

It is perfect for installation on the small solar project helps to buy and set up a complete off-grid solar kit simple, quick and easy.
SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Kit Includes


specifications

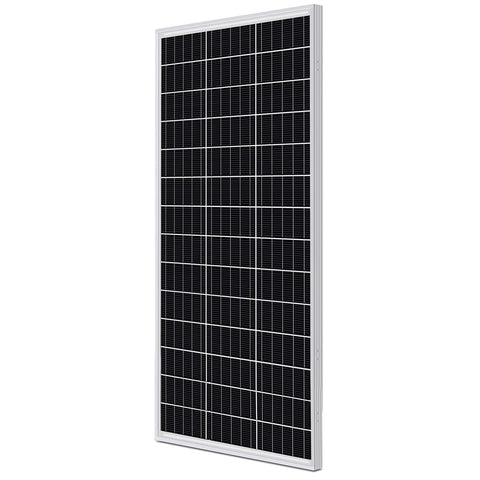

  • 210W Solar Panel
    Solar Panel
  • 40A MPPT Solar Charge Controller
    Controller
  • Bluetooth
    Controller

PHYSICAL DETAILS

Dimensions

Weight

64.57 x 26.57 x 1.18 in

26.5 Lbs

Cells

Connections

Monocrystalline solar cells

PV


INTERNAL SPECS

Rated Voltage [Vmpp]
Rated Current [Impp]
Open Circuit Voltage [Voc]

Short Circuit Current [Isc]

Max Series Fuse Rating

20V

10.5A

24.5V

12.5A

20A

Power Temp Coefficient

Voltage Temp Coefficient

Current Temp Coefficient

Max. System Voltage

–0.45% / °C

-0.37% / °C

0.1% / °C

1000VDC


WARRANTY / CERTIFICATIONS

Certification

UL

Warranty

1 Year


PHYSICAL DETAILS

Dimensions

Weight

7.2 x 4.5 x 2.25 in

2.25 Lbs

Terminals

Battery Compatibility
Battery Compatibility

Up to #7AWG

SLA, Flooded, Gel, AGM, LiFePo4


INTERNAL SPECS

Nominal Voltage

Rated Charge Current

Max. PV Input Voltage

Self-Consumption

12/24V Auto Recognition

40A

100V

≤10mA

Enclosure

Temp. Compensation


Temperature Ranges


IP32

-3mV/℃/2V

Operational:  -31°F — 113°F


Storage:        -31°F — 176˚F


WARRANTY / CERTIFICATIONS

Certification

CE / EMC Certifications

Warranty

1 Year

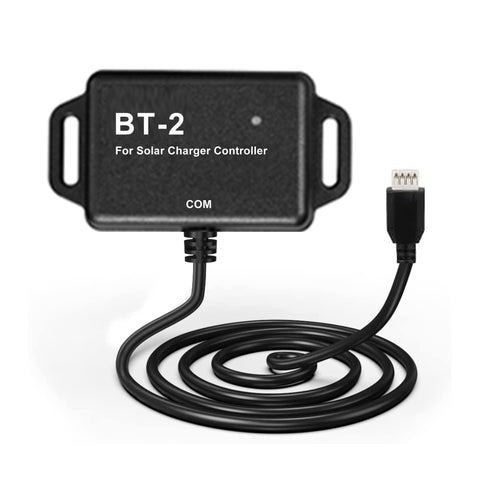

This Bluetooth Module is compatible with our MPPT Solar Charge Controllers with the connection on the component's TTL communication port, wirelessly check and adjust your system's parameters through the DC Home App (available with the Apple and Android phones)

Compatible MPPT Solar Charge Controller:

SCSMPPT40 - 40A MPPT
