Experience the superior energy density of Expert Powers LiFePO4 Cells. Benefit from stable voltage, high power output & long-lasting performance.
Get started with off-grid power! This kit includes a 12V LiFePO4 battery, 100W solar panels, MPPT controller, and cables for a simple setup. Experience the superior energy density of Expert Powers LiFePO4 Cells. Benefit from stable voltage, high power output & long-lasting performance. Expert Power's advanced integrated BMS delivers ultimate safety via fault protection, longer life through cell balancing, & reliable, optimized performance every cycle. Prismatic cell design allows dense packing & efficient use of space. Ideal for higher capacity needs & streamlined integration within battery systems. Go beyond the battery. Integrate effortlessly with our chargers and solar systems to build a fully expandable, reliable power ecosystem tailored to you. Supports both series connections (for more voltage) and parallel connections (for more capacity) for ultimate system design flexibility.
The Lithium Performance Advantage
Everything You Need: Inside the Box

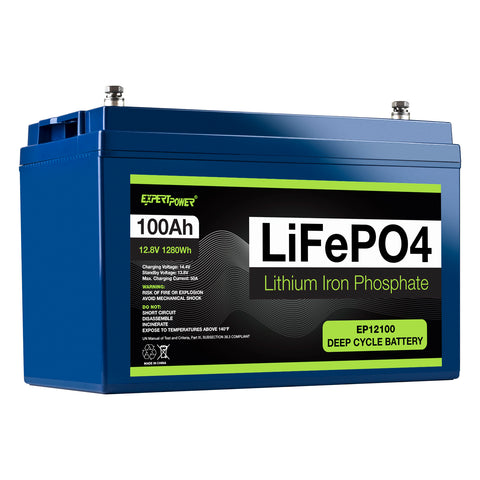

3 ExpertPower EP12100 Deep Cycle LiFePO4 Batteries | 12V 100Ah
6 ExpertPower Monocrystaline Solar Panels | 100W
1 ExpertPower MPPT Solar Charge Controller | 40A

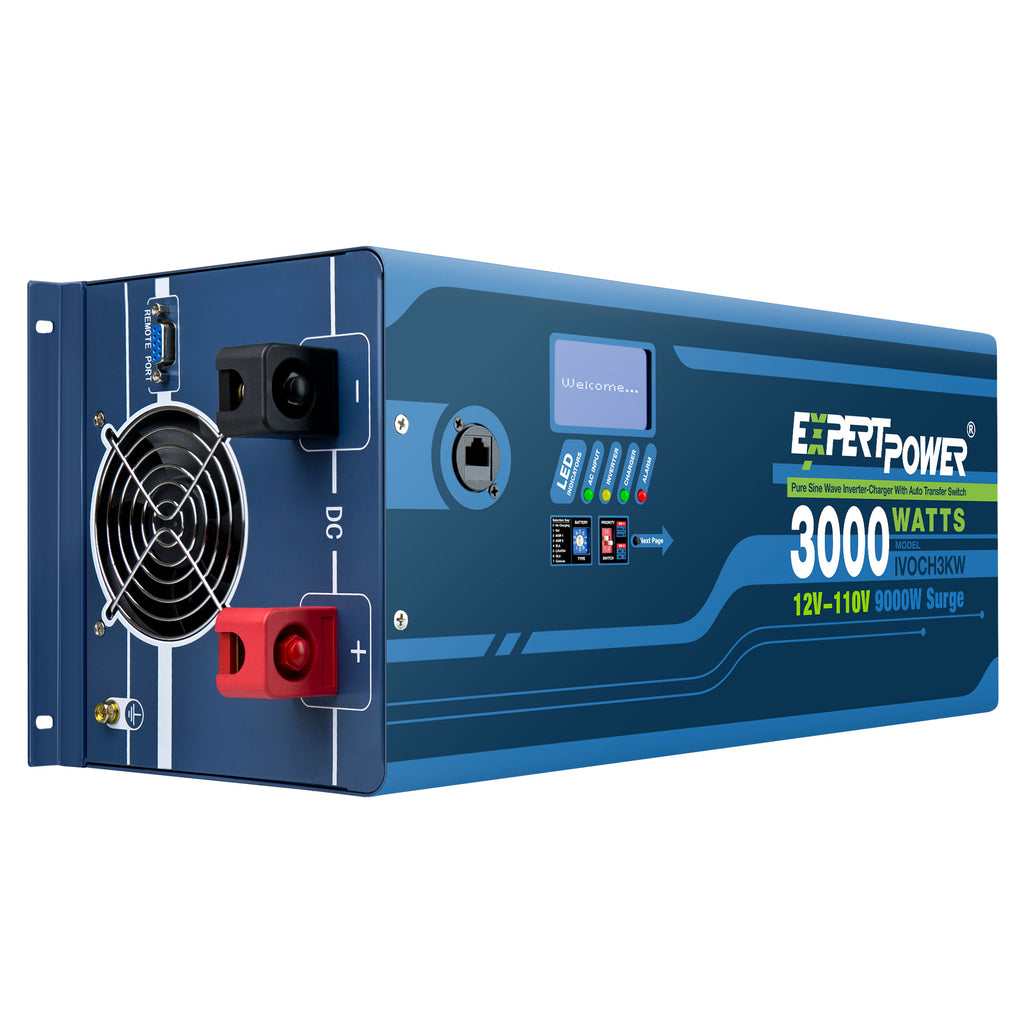

1 ExpertPower Pure Sine Wave Inverter Charger | 12V 3KW
1 ExpertPower Solar Cables | 20Ft 12AWG
1 ExpertPower Pure Copper Cables | 6Ft 12AWG
1 Solar Connectors - MMMF+FFFM
6 Mounting Z Brackets
The Lithium Performance Advantage
Smarter Protection for Longer Battery Life
High Capacity, Efficient Stacking
Build Your Ideal Energy Ecosystem
Build Bigger Banks
Title
-
LiFePO4 Battery
-
MPPT Solar Charge Controller
-
Solar Panel
-
Inverter Charger
General Specifications
Weight
27 Lbs
Length
13 In
Width
6.8 in
Height
8.4 in
Certification
UL, CE, DOT, & ISO
Warranty
2 Year
Technical Specifications
Nominal Voltage
12.8V
Charging Voltage
14.4V
Rated Capacity
≥ 100Ah (25°C , 0.2°C)
Continuous Discharge
100A
Permanent Discharge
200A 2Sec.
Continuous Charge
50A
Life Cycles
2500 with 100% DOD, 3600 with 80% DOD, 7000 with 50% DOD
Operating Temperature
Discharge: -4 — 140˚F, Charge: 32 — 140˚F
Storage Duration
6 Months
Battery Composition
LiFePO4
Terminal Type
F12/M8
MODBUS Protocol
Full Spec Sheet
General Specifications
Weight
4.4 Lbs
Length
9.65 in
Width
7.09 in
Height
3.24 in
Certification
UL
Warranty
1 Year
Technical Specifications
Nominal Voltage
12/24V Auto Recognition
Rated Charge Current
40A
Max. PV Input Voltage
100V
Self-Consumption
≤12mA(12V), ≤10mA(24V)
Enclosure
IP32
Temp. Compensation
-3mV/℃/2V
Temperature Ranges
Battery Compatibility
SLA, Flooded, Gel, AGM, LiFePo4
Wire Size
Up to #7AWG
Full Spec Sheet
General Specifications
Weight
12.6 Lbs
Length
35.43 in
Width
22.83 in
Height
1.18 in
Certification
UL
Warranty
2 Year
Technical Specifications
Rated Voltage
12.8V
Rated Current
5.32A
Open Circuit Voltage
22.2V
Short Circuit Current
5.6A
Max Series Fuse Rating
15A
Power Temp Coefficient
–0.45% / °C
Voltage Temp Coefficient
-0.37% / °C
Current Temp Coefficient
0.1% / °C
Max. System Voltage
1000VDC
Full Spec Sheet
General Specifications
Weight
55 Lbs
Length
18.38 In
Width
7.63 in
Height
7.8 In
Certification
UL
Warranty
2 Year
Technical Specifications
Battery Compatibility
SLA, Flooded, Gel, AGM, LiFePO4
Noise
Max 60dB
Rated Input Voltage
12V
Rated Output Voltage
110Vac / 120Vac / 130Vac
Nominal Output Frequency
50/60 ± 0.3Hz
Output Voltage Range
±10% rms
Battery Charger Current
60A
Recommended Operating Temperature
32°F — 140°F
Product Manual
Title
Pre-Made LiFePO4 Battery Solar Kits
Each package provides perfectly matched components – efficient solar panels, a durable LiFePO4 battery, and smart charge controller – designed for hassle-free setup and dependable power right out of the box.
