100W | 20A

Name: 100W | 20A
Brand: ExpertPower Direct
SKU: CLBL100M20C5
Price: 169.99 USD
Availability: InStock

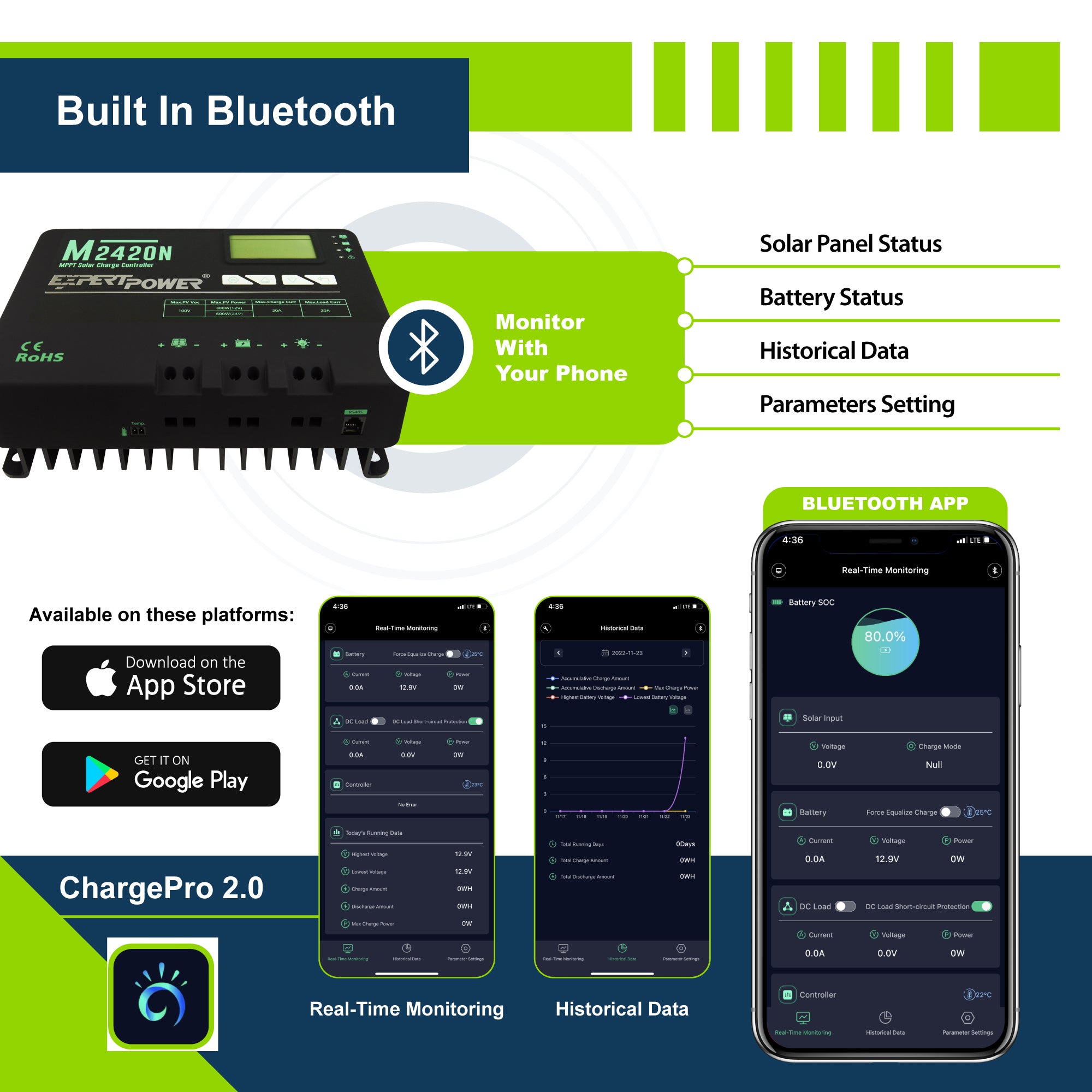

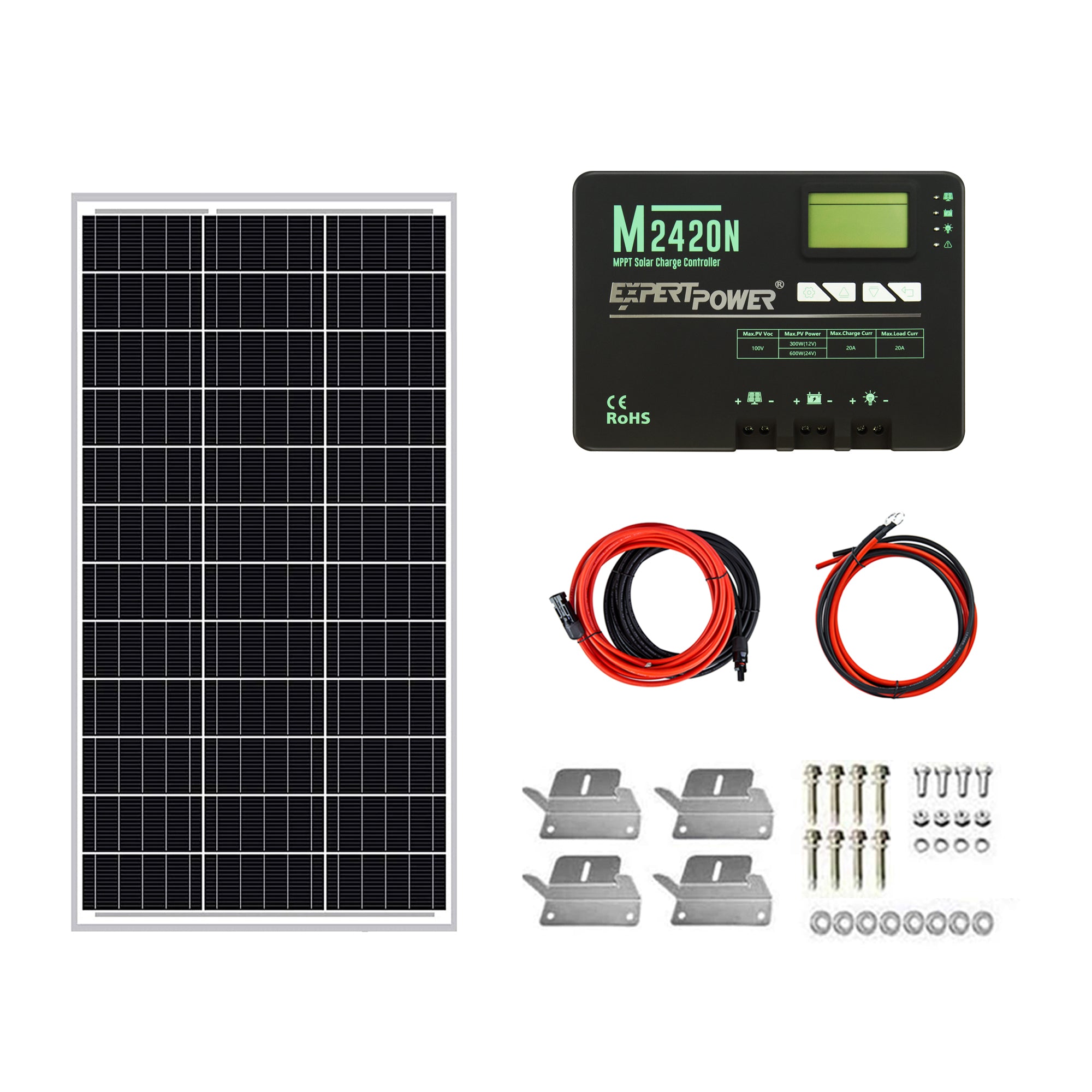

This Off-Grid Solar System Kit includes one 100W Monocrystalline Solar Panel and one 20A MPPT Solar Charge Controller with Bluetooth Adapter, one pair 10ft 12AWG Solar Cables, one pair 6ft 12AWG Battery Cables, one set of Solar Panel Mounting Brackets.

It is perfect for installation on the small solar project helps to buy and set up a complete off-grid solar kit simple, quick and easy.

$169.99

$0.00

Have Questions? Call us now:

Shipping

We use Priority and Ground services on all shipments within the contiguous United States unless otherwise noted or an expedited option is selected by the customer. Please allow 1 business day for processing and an additional 1-6 business days for your order to arrive based on your location and products ordered. For more information please refer to our compete Shipping Policy Page.

Returns & Exchanges

You can return your item within 90 days of purchase for a refund. All you need to do to start a return is contact us through your preferred channel and provide us your order number. Please refer to our Return and Exchange Guidelines for more information.

Warranty

Your purchase includes a comprehensive warranty covering manufacturing defects and transit damage. Because our kits are built with specialized parts, individual components carry different coverage periods. For a complete breakdown of coverage by part, please refer to our full Solar Kit Warranty document.

Overview
Specifications
Reviews

Este kit de sistema solar fuera de la red incluye un panel solar monocristalino de 100 W y un controlador de carga solar MPPT de 20 A con adaptador Bluetooth, un par de cables solares 12 AWG de 10 pies, un par de cables de batería 12 AWG de 6 pies y un juego de soportes de montaje para paneles solares.

Es perfecto para la instalación en pequeños proyectos solares, ayuda a comprar y configurar un kit solar completo fuera de la red de forma sencilla, rápida y sencilla.

100W Panel (Rigid)

100W Panel (Flex)

20A PWM Controller

30A LiFePO4 Controller

20A MPPT Controller

30A MPPT Controller

40A MPPT Controller

60A MPPT Controller

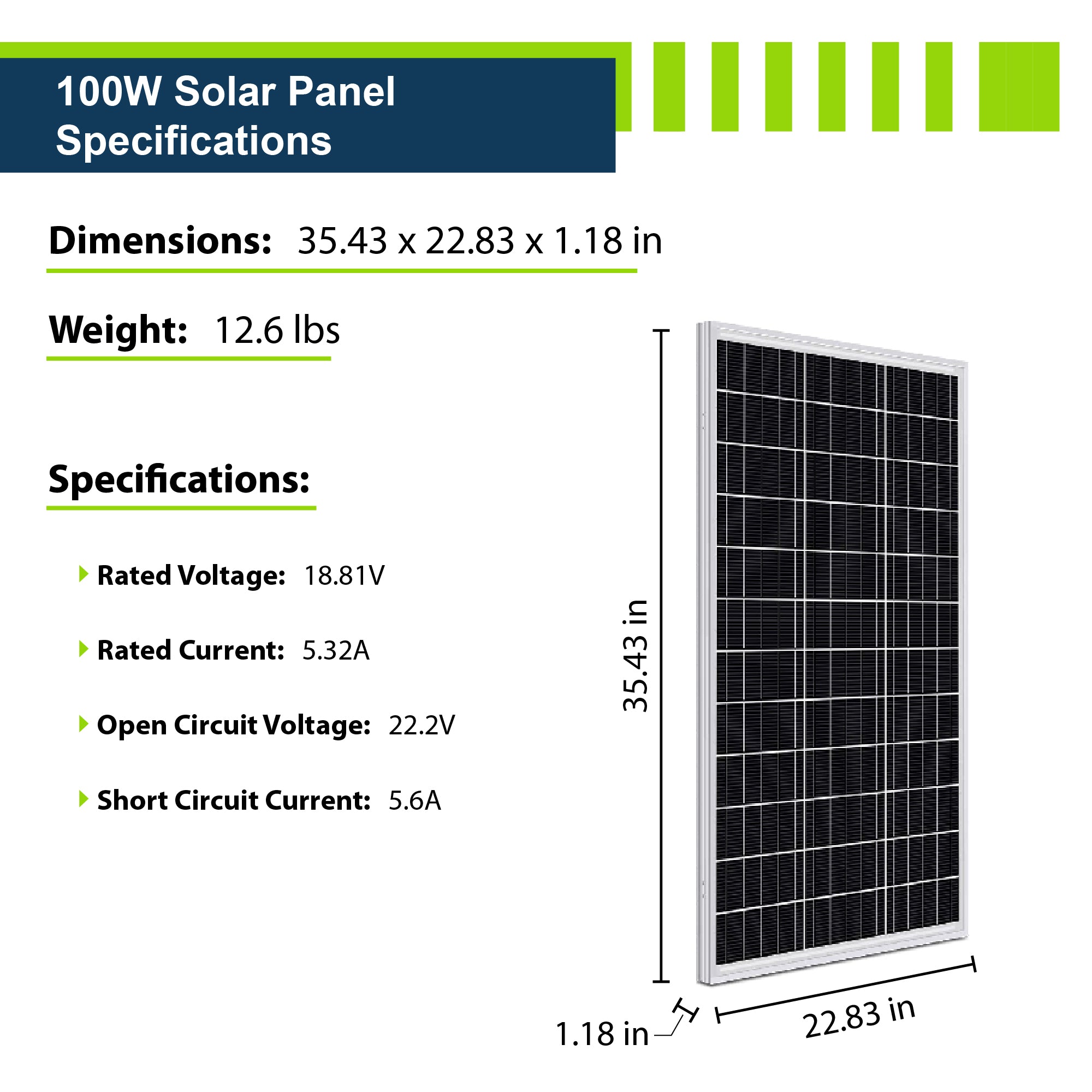

100W Solar Panel (Rigid)

Physical Details

Dimensions

35.43 x 22.83 x 1.18 in

Weight

12.6 lbs

Cells

Monocrystalline solar cells

Connections

PV

Internal Specs

Rated Voltage [Vmpp]

18.81V

Rated Current [Impp]

5.32A

Open Circuit Voltage [Voc]

22.2V

Short Circuit Current [Isc]

5.6A

Max Series Fuse Rating

15A

Power Temp Coefficient

–0.45% / °C

Voltage Temp Coefficient

-0.37% / °C

Current Temp Coefficient

0.1% / °C

Max. System Voltage

1000VDC

Warranty / Certifications

Certification

UL

Warranty

1 Year

100W Solar Panel (Flexible)

Physical Details

Dimensions

45.9 x 21.9 x 0.8 in

Weight

4.4 lbs

Cells

Gen II SunPower/Maxeon solar cells

Connections

PV

Internal Specs

Rated Voltage [Vmpp]

18.5V

Rated Current [Impp]

6.0A

Open Circuit Voltage [Voc]

21.7V

Short Circuit Current [Isc]

6.3A

Max Series Fuse Rating

15A

Power Temp Coefficient

–0.30% / °C

Voltage Temp Coefficient

–55.8 mV / °C

Current Temp Coefficient

3.5 mA / °C

Max. System Voltage

45V

Warranty / Certifications

Certification

UL

Warranty

1 Year

20A PWM Charge Controller

Physical Details

Dimensions

4.8 x 2.8 x 1.4 in

Weight

0.4 lbs

Terminals

Up to #14AWG

Battery Compatibility

AGM, GEL, LiFePO4

Internal Specs

Nominal Voltage

12/24V Auto Recognition

Rated Charge Current

20A

Max. PV Input Voltage

55V

Self-Consumption

8mA/12V; 12mA/24V

Enclosure

IP30

Temp. Compensation

-3mV/°C/2V

Temperature Ranges

Operational: -31°F — 113°F
Storage: -31°F — 176°F

Warranty / Certifications

Certification

CE / EMC Certifications

Warranty

1 Year

30A LiFePO4 Charge Controller

Physical Details

Dimensions

6.26 x 2.32 x 4.33 in

Weight

1.43 lbs

Terminals

Up to #12AWG

Battery Compatibility

LiFePO4

Internal Specs

Nominal Voltage

12/24V Auto Recognition

Rated Charge Current

30A

Max. PV Input Voltage

100V

Self-Consumption

≤10mA

Enclosure

IP30

Temp. Compensation

-3mV/°C/2V

Temperature Ranges

Operational: -31°F — 113°F
Storage: -31°F — 176°F

Warranty / Certifications

Certification

CE / EMC Certifications

Warranty

1 Year

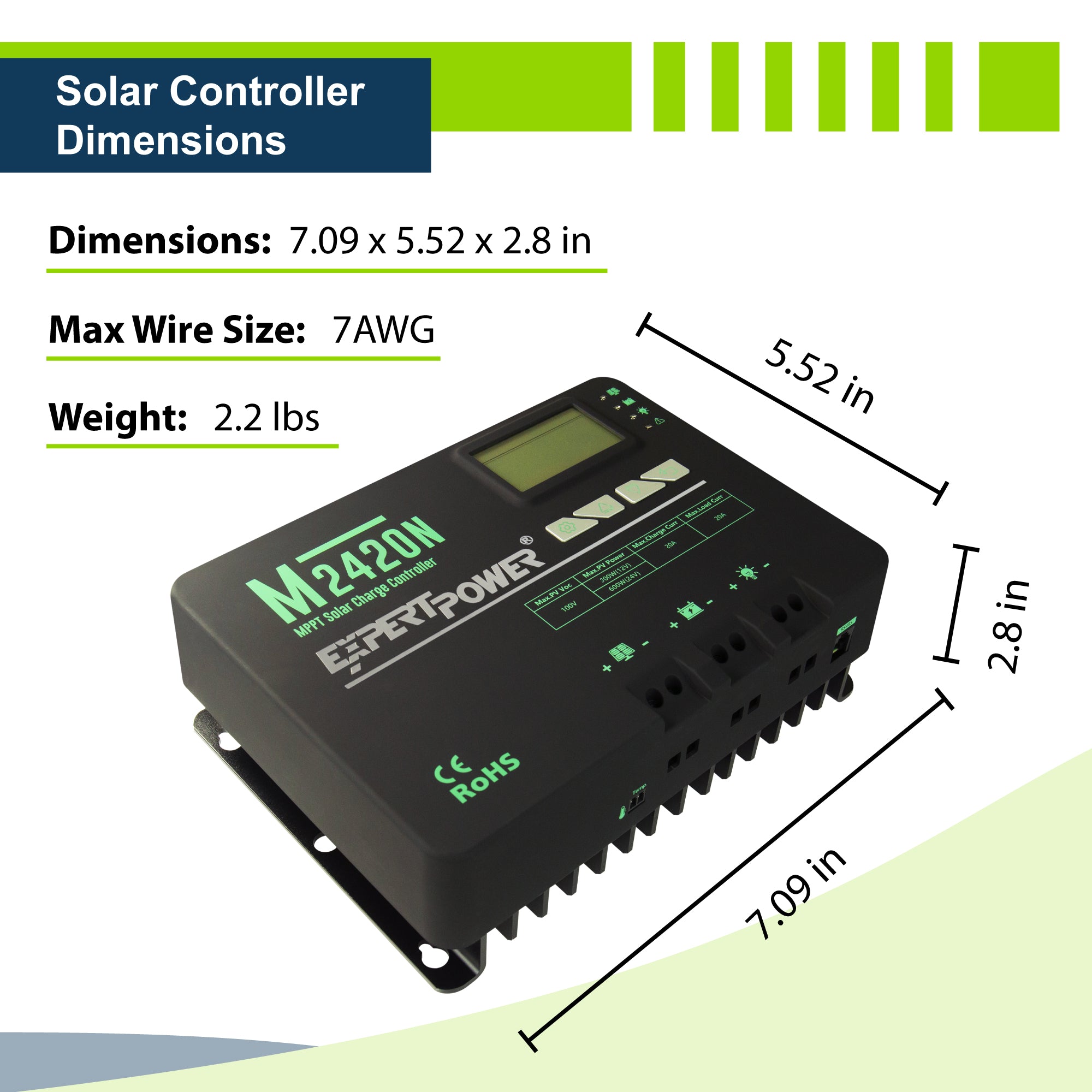

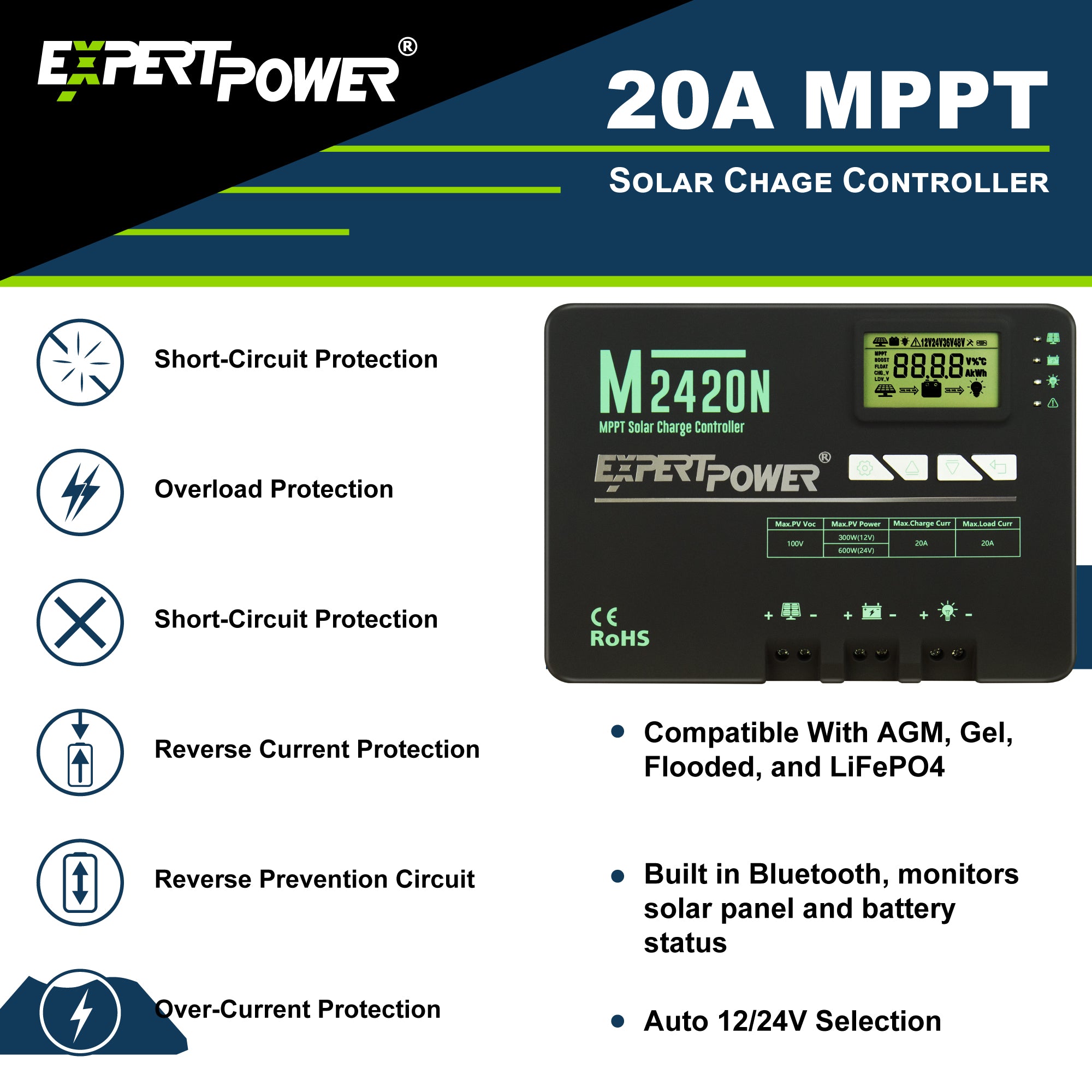

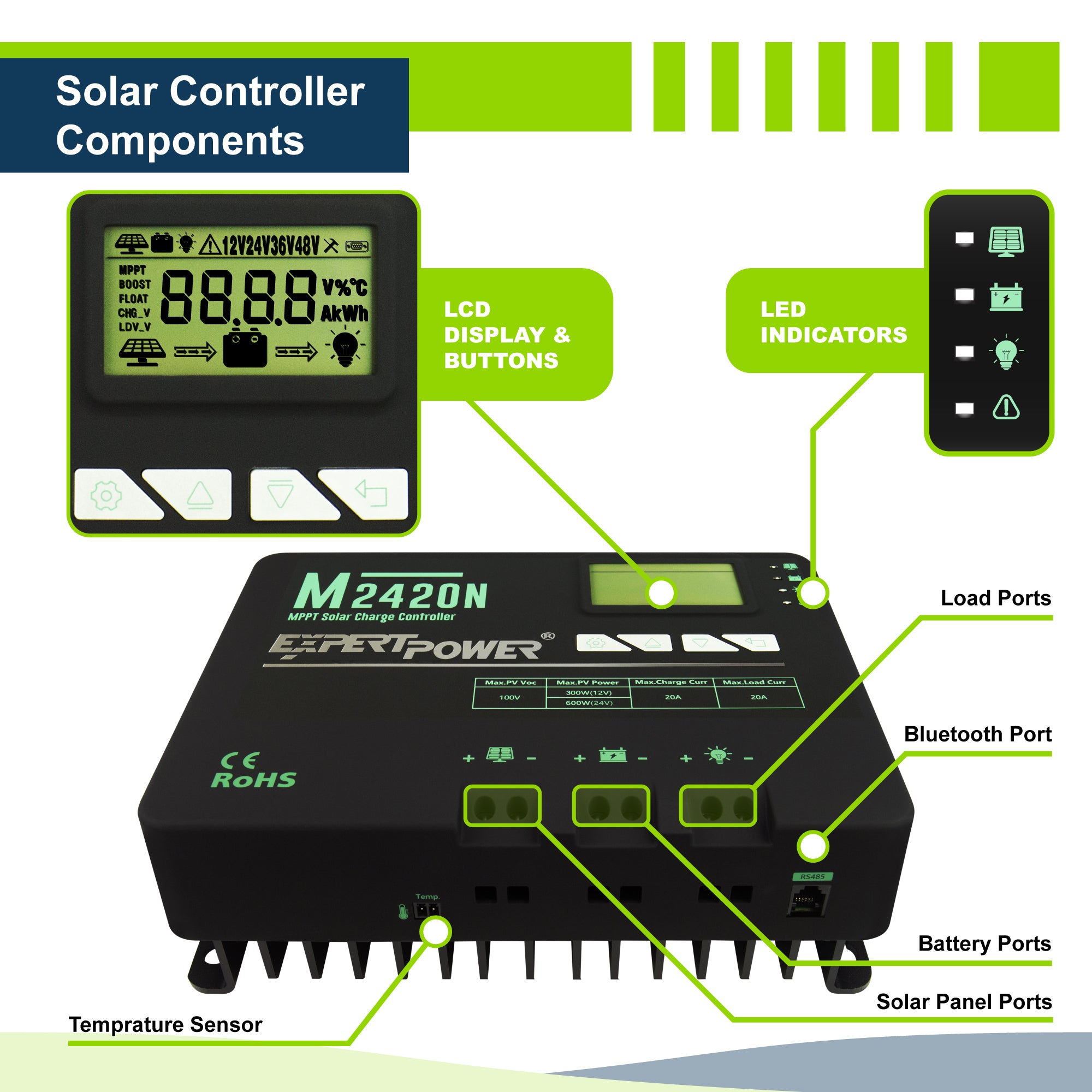

20A MPPT Charge Controller

Physical Details

Dimensions

7.09 x 5.52 x 2.8 in

Weight

2.2 lbs

Terminals

Up to #7AWG

Battery Compatibility

SLA, Flooded, Gel, AGM, LiFePO4

Internal Specs

Nominal Voltage

12/24V Auto Recognition

Rated Charge Current

20A

Max. PV Input Voltage

100V

Self-Consumption

≤10mA

Temp. Compensation

-3mV/°C/2V

Temperature Ranges

Operational: 31°F — 113°F
Storage: -31°F — 176°F

Warranty / Certifications

Certification

CE / EMC Certifications

Warranty

1 Year

30A MPPT Charge Controller

Physical Details

Dimensions

9.65 x 7.09 x 3.24 in.

Weight

4.4 lbs

Terminals

Up to #7AWG

Battery Compatibility

SLA, Flooded, Gel, AGM, LiFePO4

Internal Specs

Nominal Voltage

12/24V Auto Recognition

Rated Charge Current

30A

Max. PV Input Voltage

100V

Self-Consumption

≤10mA

Temp. Compensation

-3mV/°C/2V

Temperature Ranges

Operational: -31°F — 113°F
Storage: -31°F — 176°F

Warranty / Certifications

Certification

CE / EMC Certifications

Warranty

1 Year

40A MPPT Charge Controller

Physical Details

Dimensions

9.65 x 7.09 x 3.24 in

Weight

4.4 lbs

Terminals

Up to #7AWG

Battery Compatibility

SLA, Flooded, Gel, AGM, LiFePO4

Internal Specs

Nominal Voltage

12/24V Auto Recognition

Rated Charge Current

40A

Max. PV Input Voltage

100V

Self-Consumption

≤12mA(12V), ≤10mA(24V)

Temp. Compensation

-3mV/°C/2V

Temperature Ranges

Operational: -31°F — 113°F
Storage: -31°F — 176°F

Warranty / Certifications

Certification

CE / EMC Certifications

Warranty

1 Year

60A MPPT Charge Controller

Physical Details

Dimensions

11 x 8.27 x 3.54 in

Weight

6.61 lbs

Terminals

Up to #6AWG

Battery Compatibility

SLA, Flooded, Gel, AGM, LiFePO4

Internal Specs

Nominal Voltage

12/24/36/48V Auto Recognition

Rated Charge Current

60A

Max. PV Input Voltage

150V

Self-Consumption

≤10mA

Enclosure

IP32

Temp. Compensation

-3mV/°C/2V

Temperature Ranges

Operational: -31°F — 113°F
Storage: -31°F — 176°F

Warranty / Certifications

Certification

CE / EMC Certifications

Warranty

1 Year
