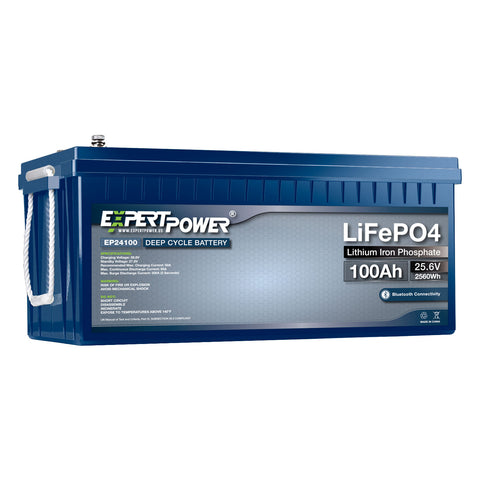

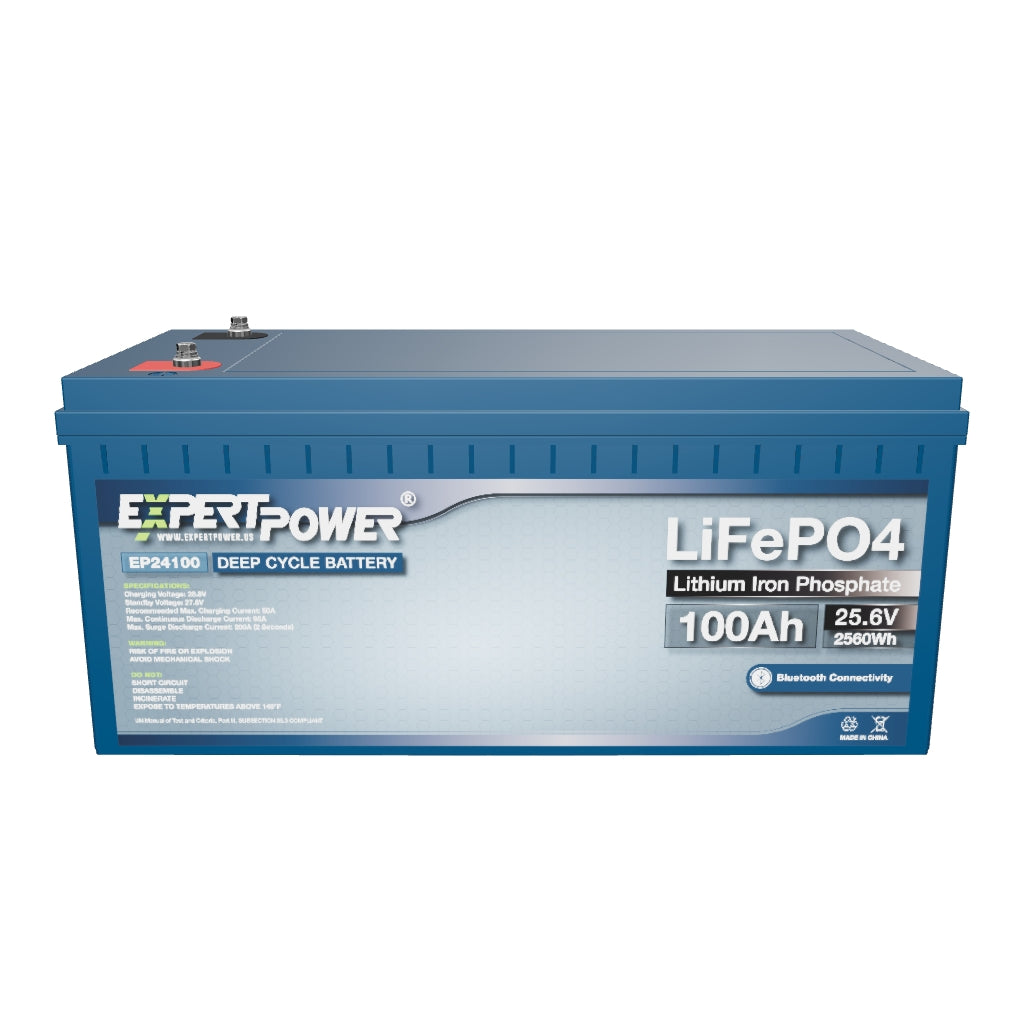

24V 100Ah LifePo4 - EP24100


Sale Off
24V 100Ah LifePo4 - EP24100

$1,499.99$1,299.99

  • Details
  • Supported Charger(s)
  • Bundles
  • Reviews
  • Lithium Technology

    Flat discharge curve holds above 24V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

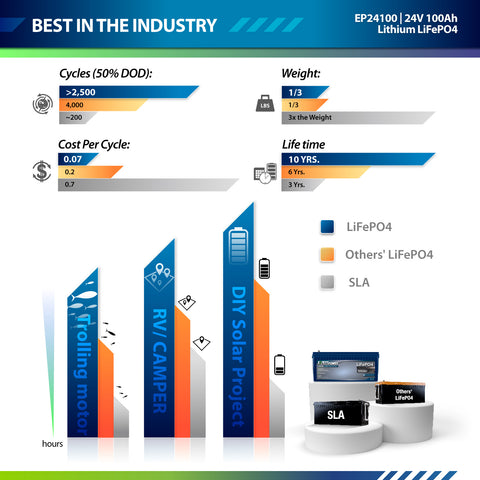

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

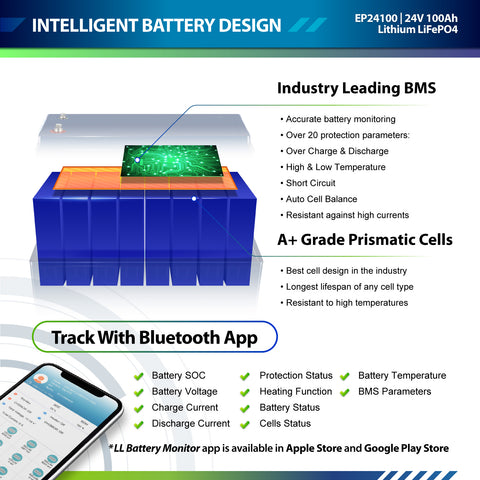

  • Built-in Safety System

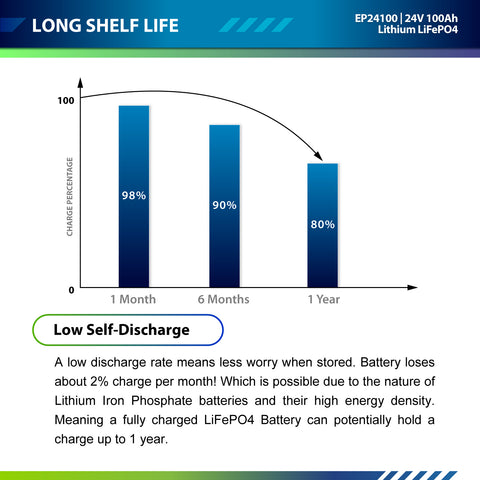

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

Save 0 %
24V 100Ah LifePo4 - EP24100

$1,499.99$1,299.99
FEATURES

SPECIFICATIONS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Voltage

24V


CAPACITY

100Ah


TERMINAL TYPE

M8


Weight

49 Lbs


DIMENSIONS

20.6 x 9.5 x 8.6 In


RECOMMENDED CHARGER(S)


Voltage

24V


CAPACITY

100Ah


TERMINAL TYPE

M8


Weight

49 Lbs


DIMENSIONS

20.6 x 9.5 x 8.6 In


RECOMMENDED CHARGER

24V 20A Smart LiFePO4 Charger


Voltage

24V


CAPACITY

100Ah


TERMINAL TYPE

M8


Weight

49 Lbs


DIMENSIONS

20.6 x 9.5 x 8.6 In


RECOMMENDED CHARGER

24V 20A Smart LiFePO4 Charger


Additional Features


specifications

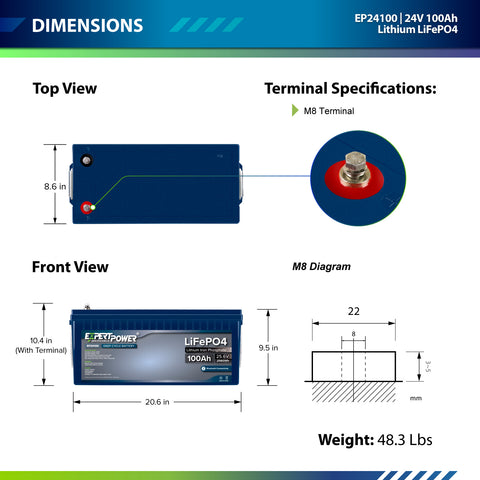

DIMENSIONS

Length

Width

20.6 In

9.5 in

Height

Height w/ Terminals

8.6 In

8.8 in


DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

LiFePO4

25.6V

28.8V

≥ 100Ah (25°C , 0.2°C)

M8

Max. Discharge Current:

Continue Discharge

Permanent Discharge

95A

150A 3Sec.

Max. Charge Current:

Continue Charge

30A

Weight

BCI Group Size

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


49 Lbs

Group 4D

12 Months at 77˚F

840140939392

LBXLFP24_100

2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F


WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

1 Year
