This Off-Grid Solar System Kit includes thirty-two 540W Monocrystalline Solar Panels, and two 10000W Hybrid Solar Inverters equipped with a 100A MPPT Solar Charge Controller each.
It is perfect for installation on an RV, Off-Grid, Cabinet, or House and helps buying and setting up a complete off-grid solar kit simple, quick and easy. The Off-Grid Solar System Kit is ideal for a power system that requires high versatility. The 20000W pure sine wave inverter, smart and powerful enough to take full advantage of the batteries with thirty-two 540W solar panels, keeping you up and running indefinitely.
Title
-
LiFePO4 Battery
-
Solar Panel
-
Hybrid Inverter
General Specifications
Weight
97 Lbs
Length
19 in
Width
18.9 in
Height
7 In
Certification
UL, CE, DOT, & ISO
Warranty
2 Year
Technical Specifications
Nominal Voltage
12.8V
Charging Voltage
56V
Rated Capacity
100Ah (25°C , 0.2°C)
Continuous Discharge
100A
Permanent Discharge
110A 10Sec.
Continuous Charge
50A
Life Cycles
2500 with 100% DOD, 3600 with 80% DOD, 7000 with 50% DOD
Operating Temperature
Discharge: -4 — 140˚F, Charge: 32 — 140˚F
Storage Duration
6 Months
Battery Composition
LiFePO4
Terminal Type
M6
MODBUS Protocol
Full Spec Sheet
General Specifications
Weight
69.67 Lbs
Length
89.69 in
Width
44.65 in
Height
1.18 in
Certification
UL
Warranty
2 Year
Technical Specifications
Rated Voltage
12.8V
Rated Current
12.97A
Open Circuit Voltage
49.60V
Short Circuit Current
13.86A
Max Series Fuse Rating
30A
Power Temp Coefficient
–0.35% / °C
Voltage Temp Coefficient
-0.28% / °C
Current Temp Coefficient
0.048% / °C
Max. System Voltage
1500VDC
Full Spec Sheet
General Specifications
Weight
108 Lbs
Length
20.3 In
Width
8.5 in
Height
31.4 In
Certification
UL
Warranty
2 Year
Technical Specifications
Rated Power
10000W
Input AC Voltage
90 - 140VAC Per Phase
Input DC Voltage
48VDC / 51.2VDC
Output AC Voltage
120V / 240V / 208V
Output Voltage
13000VA
Efficiency
91%
Waveform
Pure Sine Wave
Noise
Max 60dB
Battery Compatibility
SLA, Flooded, Gel, AGM, LiFePO4
Max. Charge Current
200A
No load Power Consumption
<70W
PV Start-Up Voltage
80VDC
Solar Charge Type
MPPT
Full Spec Sheet
J
Joe I waited to write a review for when my system had been a couple months with no problems. Well, install was completed in December, official interconnection date and system errors fixed by end of February. So it took a bit.
I will say the company had been very accommodating in the beginning with communication on equipment, designing a system right for me, any questions about the system, and correcting any billing or equipment issues. On the DC side I did all the installation and hired an electrician for the DC side install.

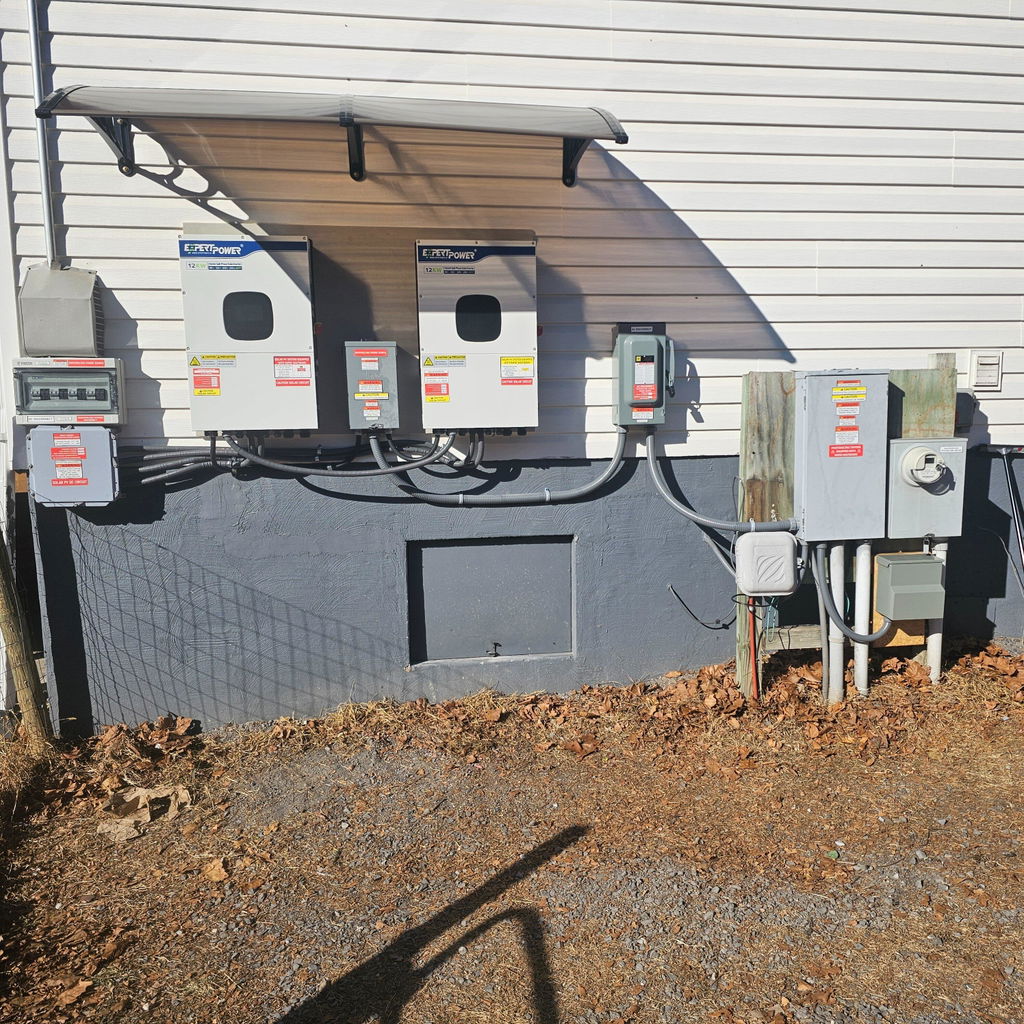

My configuration is the inverters feed directly to the main line between the main house panel and electric meter. I believe this configuration gave my inverters problems at first and the system would through error codes which looked as if there were moisture in the DC connectors, but after getting the correct system update on the inverters, everything works fine. So not all error codes mean what they think it means.
That said, If I would do it over I would run extra wires and have the main panel be wired only to the line out from the inverter and have the grid wires only connect to the electric meter. Instead of everything funneling through the grid port. I believe this is what created system issues and errors.

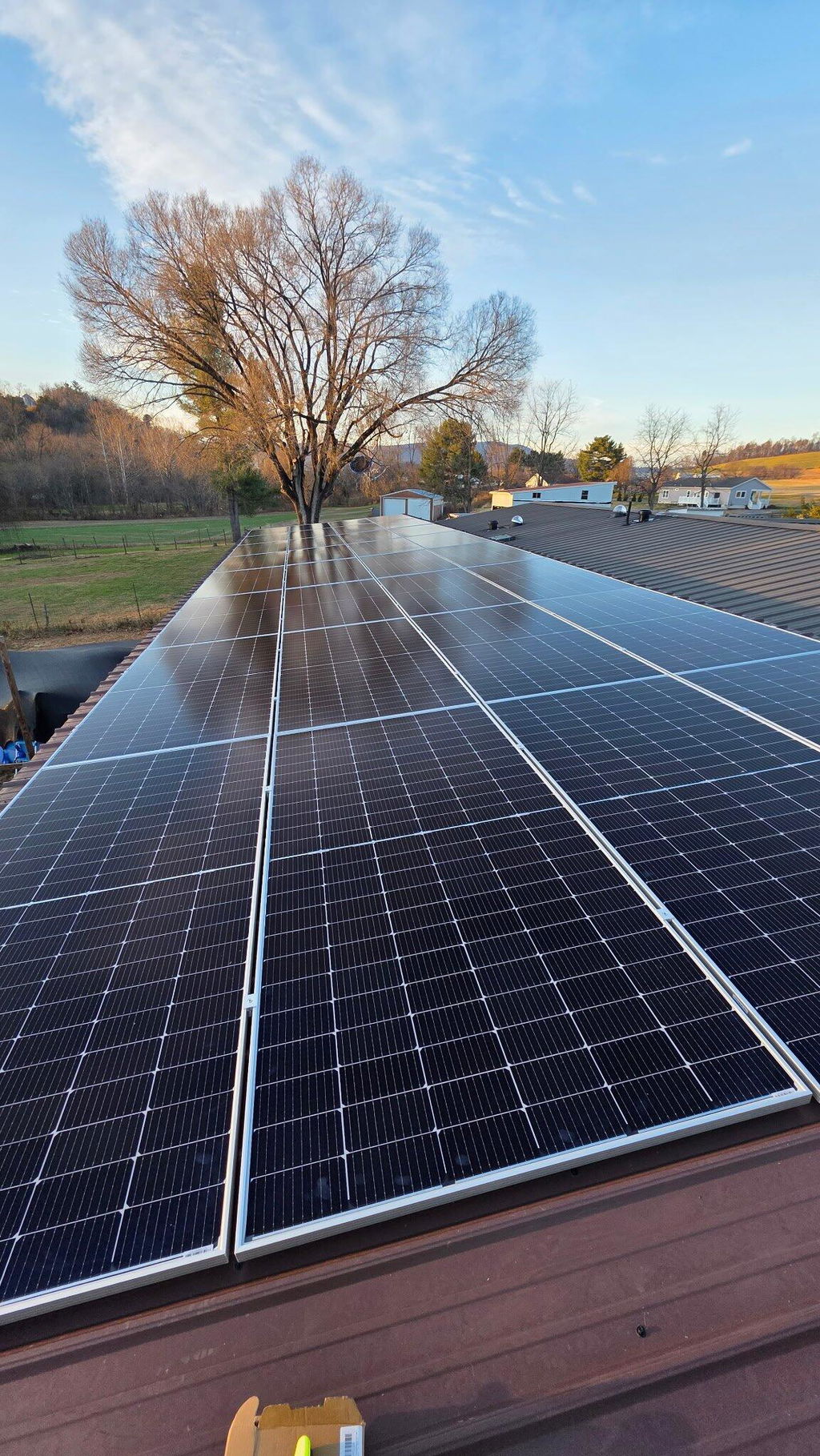

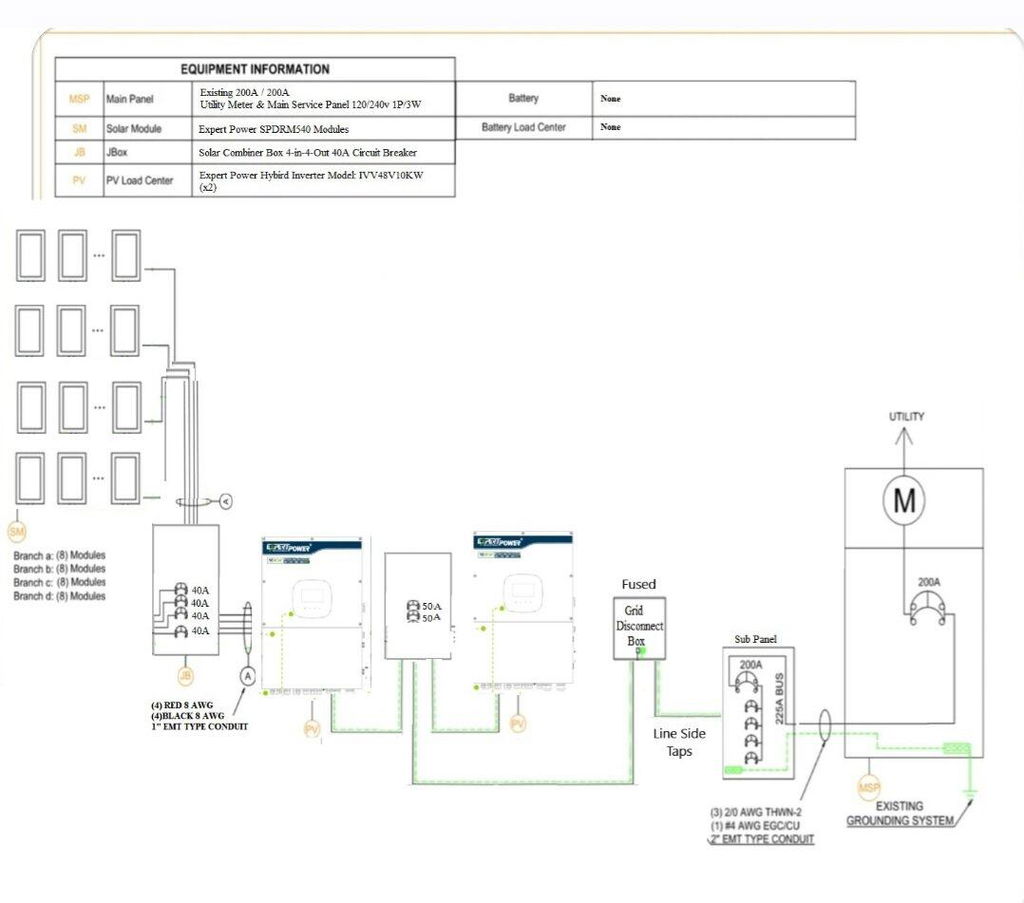

Some pro tips for self install. One line diagram is needed for submitting a solar permit and an example is in the back of installation manual. The system is in fact rated at potential 20kw AC and DC with both inverters per the manual even though actual ability is 17.280 with 32 panels. This is important for net metering submission with the Utility company.
Lastly, you will need to purchase your own wiring, connectors, fuses, solar mounting brackets, and sub panels to complete the project. This does make sense as all installations are unique in wiring distance, design, and mounting.
I do recommend this grid tie system and am overall pleased with the decision to work with this company.
