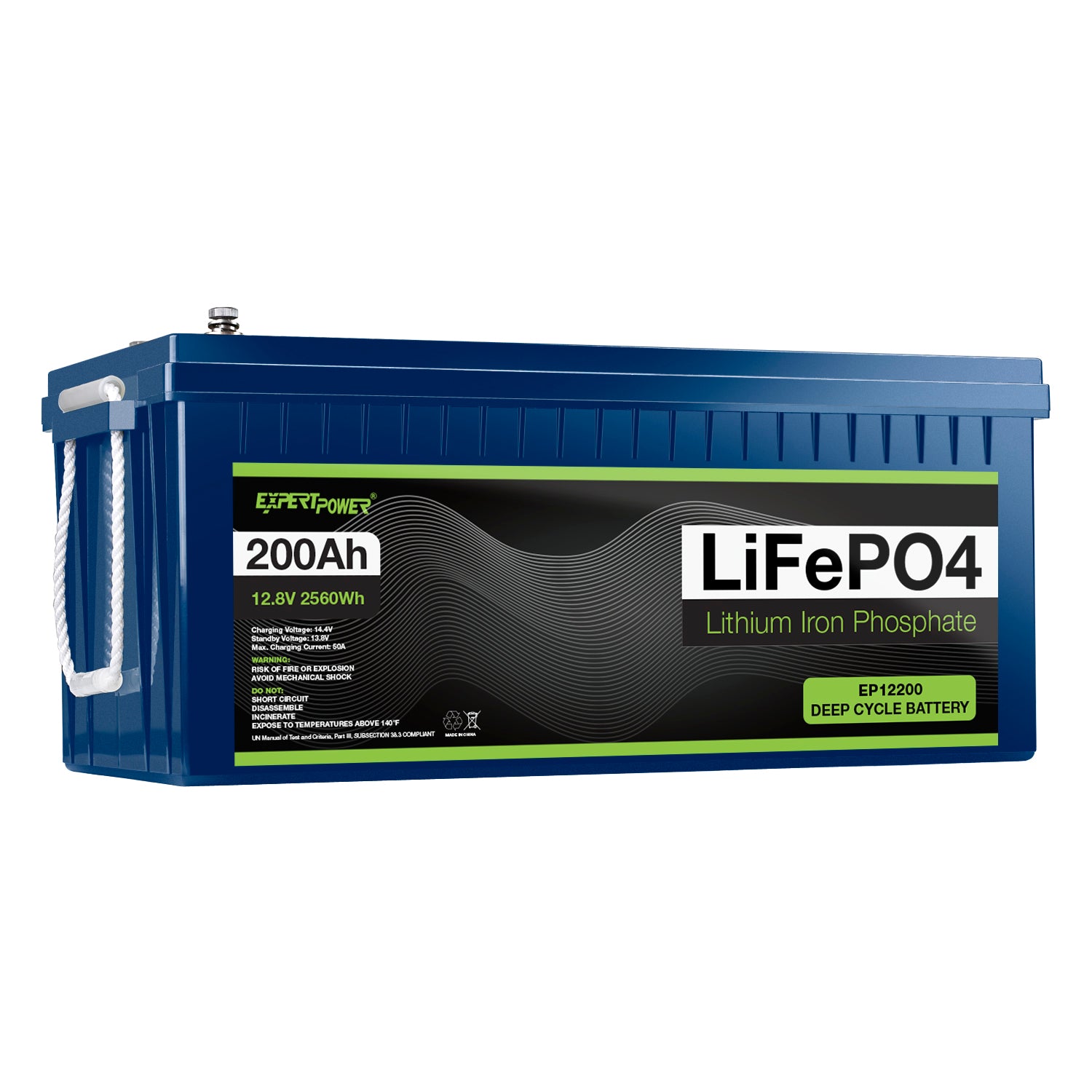

12V 200Ah LiFePO4 - EP12200



$1,449.99$1,159.99

  • Details
  • Supported Charger
  • Bundles
  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

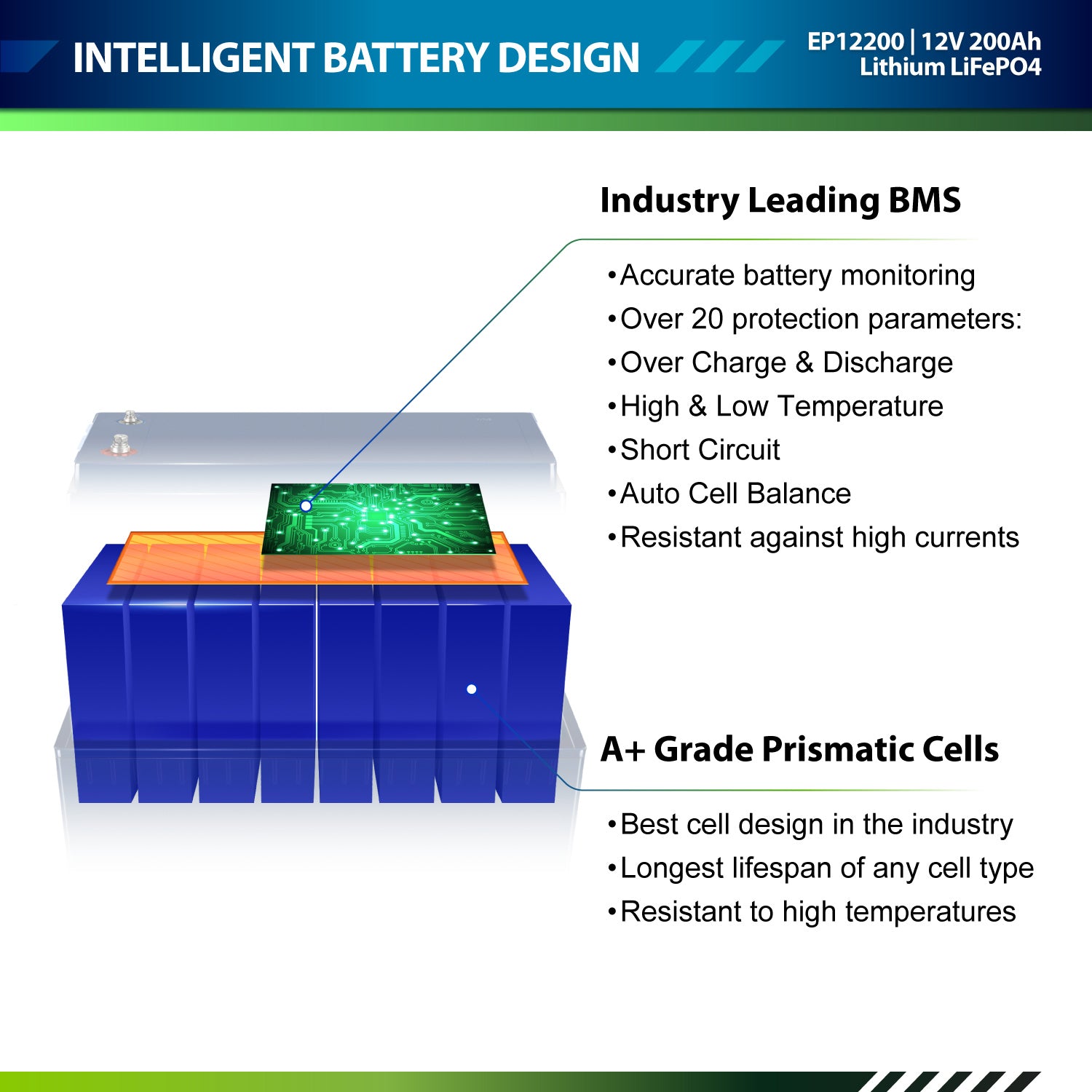

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

SMART CHARGERS

~Best Chargers For LiFePO4 Batteries~
These chargers are optimized for charging LiFePO4 with BMS.

12V 20A Smart LiFePO4 Charger

More Details

SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Voltage

12V


CAPACITY

200Ah


TERMINAL TYPE

F12M8


Weight

48.3 Lbs


DIMENSIONS

20.6 x 9.5 x 8.6 In


RECOMMENDED CHARGER(S)


Voltage

12V


CAPACITY

200Ah


TERMINAL TYPE

F12M8


Weight

48.3 Lbs


DIMENSIONS

20.6 x 9.5 x 8.6 In


RECOMMENDED CHARGER

12V 20A Smart LiFePO4 Charger


Voltage

12V


CAPACITY

200Ah


TERMINAL TYPE

F12M8


Weight

48.3 Lbs


DIMENSIONS

20.6 x 9.5 x 8.6 In


RECOMMENDED CHARGER

12V 20A Smart LiFePO4 Charger


Additional Features


specifications


DIMENSIONS

Length

Width

20.6 In

9.5 in

Height

Height w/ Terminals

8.6 In

8.8 in


DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

LiFePO4

12.8V

14.4V

≥ 200Ah (25°C , 0.2°C)

F12M8

Max. Discharge Current:

Continue Discharge

Permanent Discharge

150A

200A 2Sec.

Max. Charge Current:

Continue Charge

50A

Weight

BCI Group Size

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


48.3 Lbs

4D

12 Months at 77˚F

840140938869

LBXLFP12_200

2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F


WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

1 Year
