5千瓦时| 600W

Name: 5千瓦时| 600W
Brand: ExpertPower Direct
SKU: CLBX12100K6C21
Price: 2699.99 USD
Availability: InStock

This complete off-grid solar kit simplifies setup for RVs, boats, or campers. It includes 100Ah LiFePO4 batteries, 100W solar panels, a 3000W pure sine wave inverter charger, a 40A MPPT charge controller with Bluetooth, cables, and mounting brackets. This versatile system provides significant backup power and efficient solar charging for continuous off-grid operation.

风格

具有 40A MPPT 的标准电池

带 40A MPPT / 30A DC-DC 充电器的标准电池

具有 40A MPPT 的蓝牙电池

带 40A MPPT / 30A DC-DC 充电器的蓝牙电池

PRO 电池 - 蓝牙和自加热，带 40A MPPT

PRO 电池 - 蓝牙和自加热，带 40A MPPT / 30A DC-DC 充电器

$2,699.99

$3,099.99

Have Questions? Call us now:

Shipping

We use Priority and Ground services on all shipments within the contiguous United States unless otherwise noted or an expedited option is selected by the customer. Please allow 1 business day for processing and an additional 1-6 business days for your order to arrive based on your location and products ordered. For more information please refer to our compete Shipping Policy Page.

Returns & Exchanges

You can return your item within 90 days of purchase for a refund. All you need to do to start a return is contact us through your preferred channel and provide us your order number. Please refer to our Return and Exchange Guidelines for more information.

Warranty

All ExpertPower LiFePO4 batteries are covered by ExpertPower's 2-Year Warranty (except the PRO Series and EP48100). For further details, please refer to Lithium Battery Warranty Information.

Overview
Specifications
Reviews

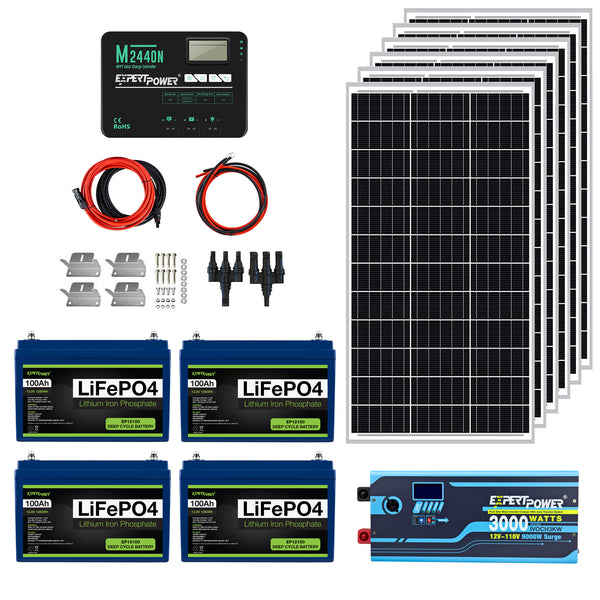

该离网太阳能系统套件包括四节 12V100Ah LiFePO4 电池、6 x 100W 太阳能电池板和一个 3000W 纯正弦波逆变器充电器和一个带蓝牙适配器的 40A MPPT 太阳能充电控制器、一对 20 英尺 10AWG 太阳能电缆、一对 6 英尺 8AWG 电池电缆和 6 个太阳能电池板安装支架。

它非常适合安装在房车、船或露营车上，有助于简单、快速、轻松地购买和设置完整的离网太阳能套件。离网太阳能系统套件非常适合需要高多功能性的电力系统。两块四块电池可提供 5120Wh 的备用电源，其效率通过 3000W 纯正弦波逆变器最大化，智能而强大，足以充分利用电池的 150A 放电电流，并配有 6 个 100W 太阳能电池板，可产生多达 30 -36A 的电池充电电流，让您无限期地保持运行。

Title

LiFePO4 Battery
MPPT Solar Charge Controller
Solar Panel
Inverter Charger

General Specifications

Weight

27 磅

Length

13 英寸

Width

6.8 英寸

Height

8.4 英寸

Certification

UL, CE, DOT, & ISO

Warranty

2 Year

Technical Specifications

Nominal Voltage

12.8V

Charging Voltage

14.4V

Rated Capacity

≥ 100Ah (25°C , 0.2°C)

Continuous Discharge

100A

Permanent Discharge

200A 2Sec.

Continuous Charge

50A

Life Cycles

2500 with 100% DOD, 3600 with 80% DOD, 7000 with 50% DOD

Operating Temperature

Discharge: -4 — 140˚F, Charge: 32 — 140˚F

Storage Duration

2 Year

Battery Composition

磷酸铁锂

Terminal Type

F12/M8

MODBUS Protocol

Download

Full Spec Sheet

Download

General Specifications

Weight

4.4 磅

Length

9.65 in

Width

7.09 in

Height

3.24 in

Certification

UL

Warranty

1 Year

Technical Specifications

Nominal Voltage

12/24V Auto Recognition

Rated Charge Current

40A

Max. PV Input Voltage

100V

Self-Consumption

≤12mA(12V), ≤10mA(24V)

Enclosure

IP32

Temp. Compensation

-3mV/℃/2V

Temperature Ranges

Battery Compatibility

SLA, Flooded, Gel, AGM, LiFePo4

Wire Size

Up to #7AWG

Full Spec Sheet

Download

General Specifications

Weight

12.8 磅

Length

35.43 in

Width

22.83 in

Height

1.18 in

Certification

UL

Warranty

2 Year

Technical Specifications

Rated Voltage

12.8V

Rated Current

5.32A

Open Circuit Voltage

22.2V

Short Circuit Current

5.6A

Max Series Fuse Rating

15A

Power Temp Coefficient

–0.45% / °C

Voltage Temp Coefficient

-0.37% / °C

Current Temp Coefficient

0.1% / °C

Max. System Voltage

1000VDC

Full Spec Sheet

Download

General Specifications

Weight

55 磅

Length

18.38 英寸

Width

7.63 英寸

Height

7.8英寸

Certification

UL

Warranty

2 Year

Technical Specifications

Battery Compatibility

SLA, Flooded, Gel, AGM, LiFePO4

Noise

Max 60dB

Rated Input Voltage

12V

Rated Output Voltage

110Vac / 120Vac / 130Vac

Nominal Output Frequency

50/60 ± 0.3Hz

Output Voltage Range

±10% rms

Battery Charger Current

60A

Recommended Operating Temperature

32°F — 140°F

Product Manual

Download
