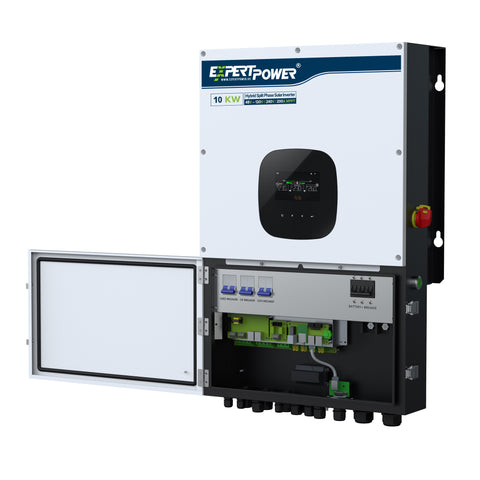

IVV48V10KW
Expert Power's Hybrid Solar Inverter features a built-in 12KW MPPT solar charger & 200A utility battery charger for optimal charging. Supports two 6000W PV inputs, each up to 600V Voc from panels. This dual-input capability boosts flexibility and efficiency in solar energy collection. Provides 10KW rated (20KW surge) output, compatible with 120/208/240Vac.
Have Questions? Call us now:
Shipping
We use Priority and Ground services on all shipments within the contiguous United States unless otherwise noted or an expedited option is selected by the customer. Please allow 1 business day for processing and an additional 1-6 business days for your order to arrive based on your location and products ordered. For more information please refer to our compete Shipping Policy Page.
Returns & Exchanges
You can return your item within 90 days of purchase for a refund. All you need to do to start a return is contact us through your preferred channel and provide us your order number. Please refer to our Return and Exchange Guidelines for more information.
Warranty
All ExpertPower LiFePO4 batteries are covered by ExpertPower's 2-Year Warranty (except the PRO Series and EP48100). For further details, please refer to Lithium Battery Warranty Information.
Overview
Specifications
Reviews
ExpertPower 48V 6500W 纯正弦波逆变充电器 |峰值19500W |直流 48V - 交流 110V |兼容 LifePO4/ 锂电池 |自动转换开关|液晶显示器 符合 UL1741 标准：我们的 IVO4865 系列具有 120V 纯正弦波交流输出，符合 UL1741 标准。内置高达 120A 的 MPPT 太阳能充电器和最大 100A 的市电电池充电器。 120A，确保最佳的能源利用。最大光伏输入为 250V (Voc)，双光伏输入可提高效率。 增强的并行功能：并行套件可实现无缝扩展，最多支持 6 个单元。无论是 120V 单相运行（1 台）、120V/240V 分相功能（2 台），还是 208V 三相支持（3 台），我们的逆变器都能满足您的要求。 高级连接：体验我们支持 WiFi 的型号的便利。通过专用应用程序（可在相应的应用程序商店获取），通过 WiFi 将逆变器数据传输到您的 iOS 或 Android 智能手机。 无电池电源：6500W 48V 逆变器旨在通过光伏阵列或交流电网高效地为负载供电，无需连接电池。 智能控制和通信：使用可拆卸的 LCD 控制模块轻松管理您的系统。多个通信端口（RS485、CAN-BUS、RS232）便于与 BMS 系统集成。
ExpertPower 48V 6500W 纯正弦波逆变充电器 |峰值19500W |直流 48V - 交流 110V |兼容 LifePO4/ 锂电池 |自动转换开关|液晶显示器
Weight
40.56 磅
Length
17.03 中
Width
5.8 英寸
Height
21.8英寸
Certification
UL, CE, DOT, & ISO
5 Year
Rated Power
10000W
Input AC Voltage
85-140VAC Per Phase
Input DC Voltage
48VDC / 51.2VDC
Output AC Voltage
120VAC / 208VAC / 240VAC
Output Surge Power
20000W
Efficiency
91%
Waveform
Pure Sine Wave
Protections

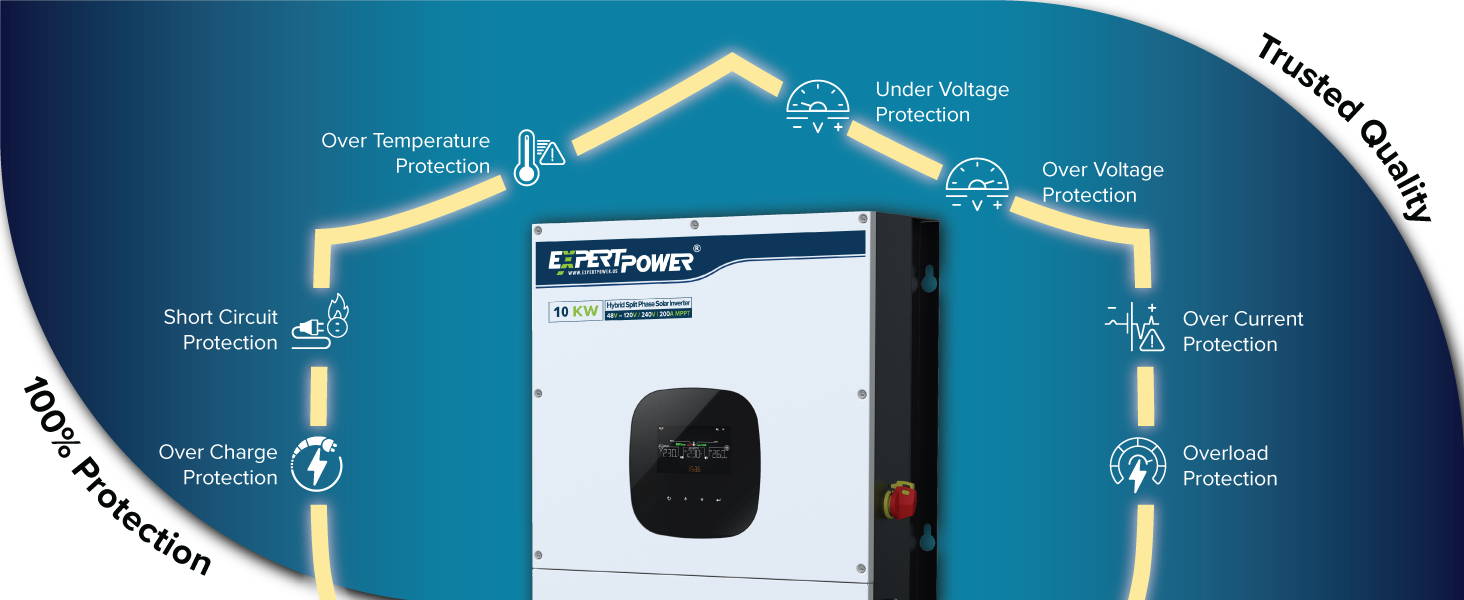

PV Rapid Shutdown, PV Arc Fault, PV Lightning, PV DC Switch, Ground Fault Detection
Type & Max. PV Array Power
MPPT 12000W (6000W X 2)
Max. PV Open Circuit Voltage
600VDC
Max. PV Input Current
18A x 2
PV Start-Up Voltage
125VDC
Max. Solar Charge Current
200A
Max. AC Charge Current
Max. Charge Current
120A
Product Manual
Download
Installation Requirements
View
Full Spec Sheet
