首页 / 产品集合 / Victron 太阳能套件 / 2.4千瓦时| 600W - 威创能源

2.4千瓦时| 600W - 威创能源

  • Details
  • Description

  • SLA Technology

    Absorbent Glass Mat Technology

  • ABS Impact Resistant Case

    Rugged Impact Resistant Case and Cover

  • UL Certification

    ISO 9001, ISO 14001, ISO 45001, and UL certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

太阳能系统套件包括六个 100W 太阳能电池板、一个 Victron 50A MPPT 太阳能充电控制器、一个 12V 200Ah VRLA SLA (AGM/GEL) 深循环电池、一个 Victron 30A DC-DC 充电器、一个 Victron 12V 3000W 纯正弦波逆变器充电器、一对用于为六个面板创建 2S3P 配置的三合一连接电缆、一对 20 英尺 10AWG 太阳能电缆、一对 6 英尺 8AWG 电池电缆和六套太阳能电池板安装支架。

该套件非常适合房车、货车或船太阳能项目，为深循环电池提供多种充电方法，包括太阳能、启动电池/交流发电机以及其他充电源，例如岸电或发电机。该套件简化了购买和设置完整离网太阳能系统的过程。 200Ah电池可提供2,400Wh备用电源，六块100W太阳能电池板可为电池发电高达3,000Wh（按5个高峰小时计算），可无限期实现不间断运行。

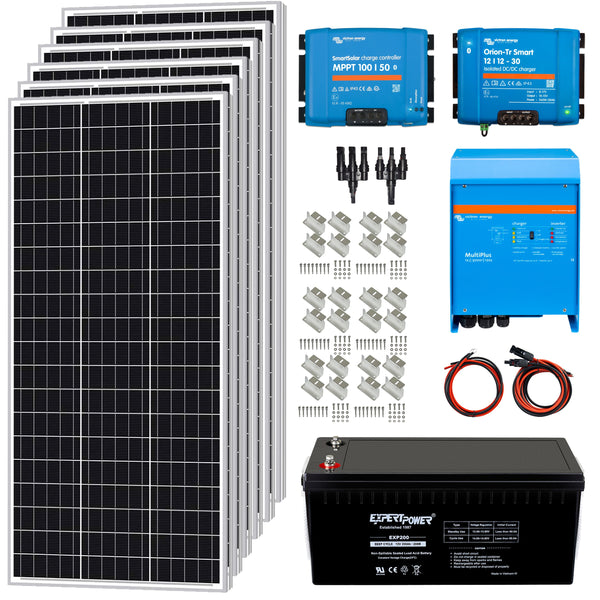

该套件包含：

6 x 100W 单晶太阳能电池板

6 个面板安装支架

1 x VRLA SLA (AGM/GEL) 深循环电池

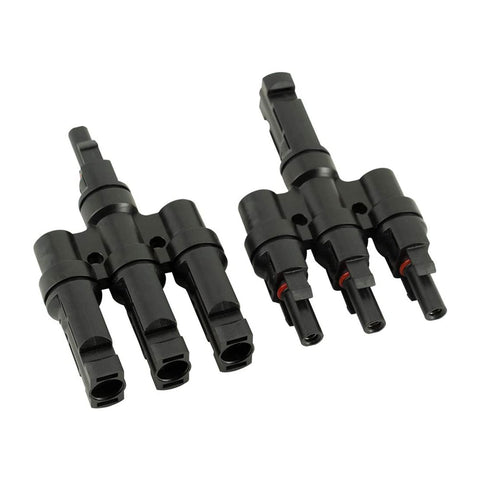

1 x 3 合 1 连接适配器，用于 2S3P 面板连接

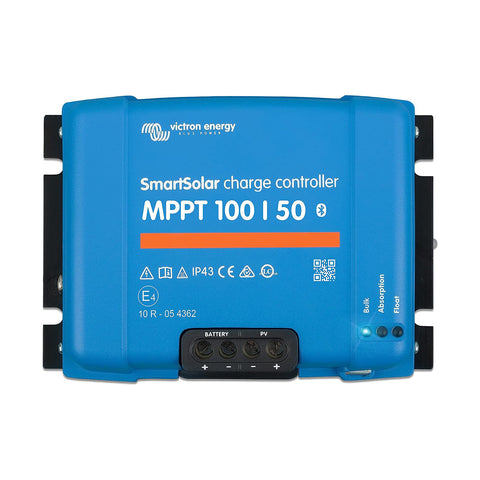

1 x Victron SmartSolar MPPT 100/50 (SCC110050210)

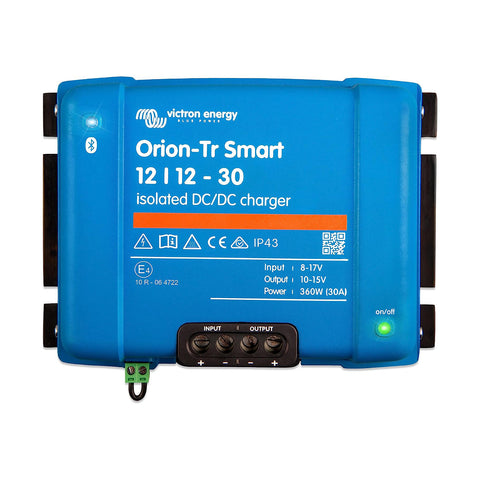

1 x Victron Orion-Tr 智能 DC-DC 充电器 12 | 12-30 (ORI121236120)

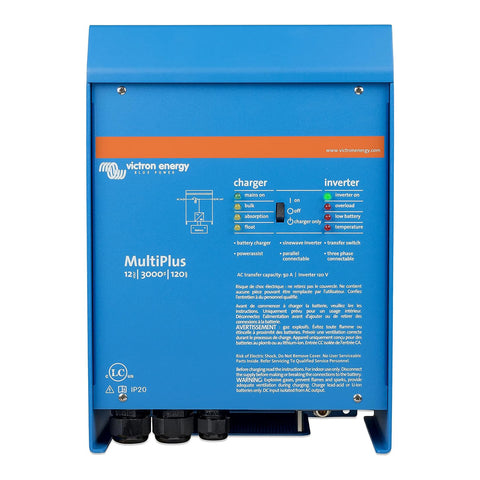

1 x Victron MultiPlus 12V 3000W 120V 逆变器充电器 (PMP122301102)

1 x 20 英尺 10AWG 面板电缆至控制器

1 x 6 英尺 8AWG 控制器电池电缆

Save 0 %
2.4千瓦时| 600W - 威创能源
$2,799.99
  • Details
  • Description

  • Lithium Technology

    Flat discharge curve holds above for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • SLA Technology

    Absorbent Glass Mat Technology

  • ABS Impact Resistant Case

    Rugged Impact Resistant Case and Cover

  • UL Certification

    ISO 9001, ISO 14001, ISO 45001, and UL certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

太阳能系统套件包括六个 100W 太阳能电池板、一个 Victron 50A MPPT 太阳能充电控制器、一个 12V 200Ah VRLA SLA (AGM/GEL) 深循环电池、一个 Victron 30A DC-DC 充电器、一个 Victron 12V 3000W 纯正弦波逆变器充电器、一对用于为六个面板创建 2S3P 配置的三合一连接电缆、一对 20 英尺 10AWG 太阳能电缆、一对 6 英尺 8AWG 电池电缆和六套太阳能电池板安装支架。

该套件非常适合房车、货车或船太阳能项目，为深循环电池提供多种充电方法，包括太阳能、启动电池/交流发电机以及其他充电源，例如岸电或发电机。该套件简化了购买和设置完整离网太阳能系统的过程。 200Ah电池可提供2,400Wh备用电源，六块100W太阳能电池板可为电池发电高达3,000Wh（按5个高峰小时计算），可无限期实现不间断运行。

该套件包含：

6 x 100W 单晶太阳能电池板

6 个面板安装支架

1 x VRLA SLA (AGM/GEL) 深循环电池

1 x 3 合 1 连接适配器，用于 2S3P 面板连接

1 x Victron SmartSolar MPPT 100/50 (SCC110050210)

1 x Victron Orion-Tr 智能 DC-DC 充电器 12 | 12-30 (ORI121236120)

1 x Victron MultiPlus 12V 3000W 120V 逆变器充电器 (PMP122301102)

1 x 20 英尺 10AWG 面板电缆至控制器

1 x 6 英尺 8AWG 控制器电池电缆

SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS


Kit Includes

1x

6x

1x

1x

1x

6x

1x

1x

1x

specifications

  • 200Ah Deep Cycle Battery
    Battery
  • 100W Solar Panel
    Solar Panel
  • 50A MPPT Victron Controller
    Controller
  • DC-DC Victron Charger
    Bluetooth
  • 3KW Victron Inverter Charger
    Bluetooth

DIMENSIONS

Length

Weight

20.59 英寸

9.45 英寸

Height

Height w/ Terminals

8.62 英寸

8.82 英寸

DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

阀控式铅酸蓄电池







M8

Weight

BCI Group Size

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


132.28 磅









2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F

Max. Discharge Current:

Continue Discharge

Permanent Discharge





Max. Charge Current:

Continue Charge



Weight

BCI Group Size

Storage Duration







Life Cycles




Operating Temperature


132.28 磅









2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F

WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

1 Year

PHYSICAL DETAILS

Dimensions

Weight

40.16 x 20.08 x 1.38 英寸

12.8 磅

Cells

Connections

单晶太阳能电池

光伏发电

INTERNAL SPECS

Rated Voltage [Vmpp]
Rated Current [Impp]
Open Circuit Voltage [Voc]

Short Circuit Current [Isc]

Max Series Fuse Rating

18.81V

5.32A

22.2V

5.6A

15A

Power Temp Coefficient

Voltage Temp Coefficient

Current Temp Coefficient

Max. System Voltage

–0.45% / °C

-0.37% / °C

0.1% / °C

1000VDC

WARRANTY / CERTIFICATIONS

Certification

UL

Warranty

1 Year

PHYSICAL DETAILS

Dimensions

Weight

7.2 x 4.5 x 2.25 英寸

2.25 磅

Terminals

Battery Compatibility
Battery Compatibility

高达#7AWG

SLA, Flooded, Gel, AGM, LiFePo4

INTERNAL SPECS

Nominal Voltage

Rated Charge Current

Max. PV Input Voltage

Self-Consumption

12/24V Auto Recognition

40A

100V

≤10mA

Enclosure

Temp. Compensation


Temperature Ranges


IP32

-3mV/℃/2V

Operational:  -31°F — 113°F


Storage:        -31°F — 176˚F

WARRANTY / CERTIFICATIONS

Certification

CE / EMC 认证

Warranty

1 Year

输入电压范围：10-17V --- 输出电压调节范围：10-15V --- 续标称输出电压和 40°C 时的输出电流：30A --- 标称输出电压负 20% 时的最大输出电流（10 秒）：40A


PHYSICAL DETAILS

Dimensions

Weight

4.68 x 2.95 x 1.08 英寸

0.27 磅

Noise

Battery Compatibility
Battery Compatibility



SLA, Flooded, Gel, AGM, LiFePo4

INTERNAL SPECS

Rated Input Voltage

Rated Output Voltage

Output Voltage Range

Nominal Output Frequency

Efficiency











Automatic Shut-Down:

Low DC Input Voltage

High DC Input Voltage





Recovery:

High DC input voltage



Low Battery Alarm

Battery Charger Current

Power-saving mode

Power saving on

Humidity



Overload Protection






Overload Protection








Overload Protection





Temperature Ranges
















WARRANTY / CERTIFICATIONS

Certification

CE / EMC 认证

Warranty
