首页 / 产品集合 / 产品注册集合 / 12V 5Ah 磷酸铁锂 - EP125

12V 5Ah 磷酸铁锂 - EP125


Sale Off
12V 5Ah 磷酸铁锂 - EP125

$49.99$32.99

  • Details
  • Supported Charger
  • Bundles
  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

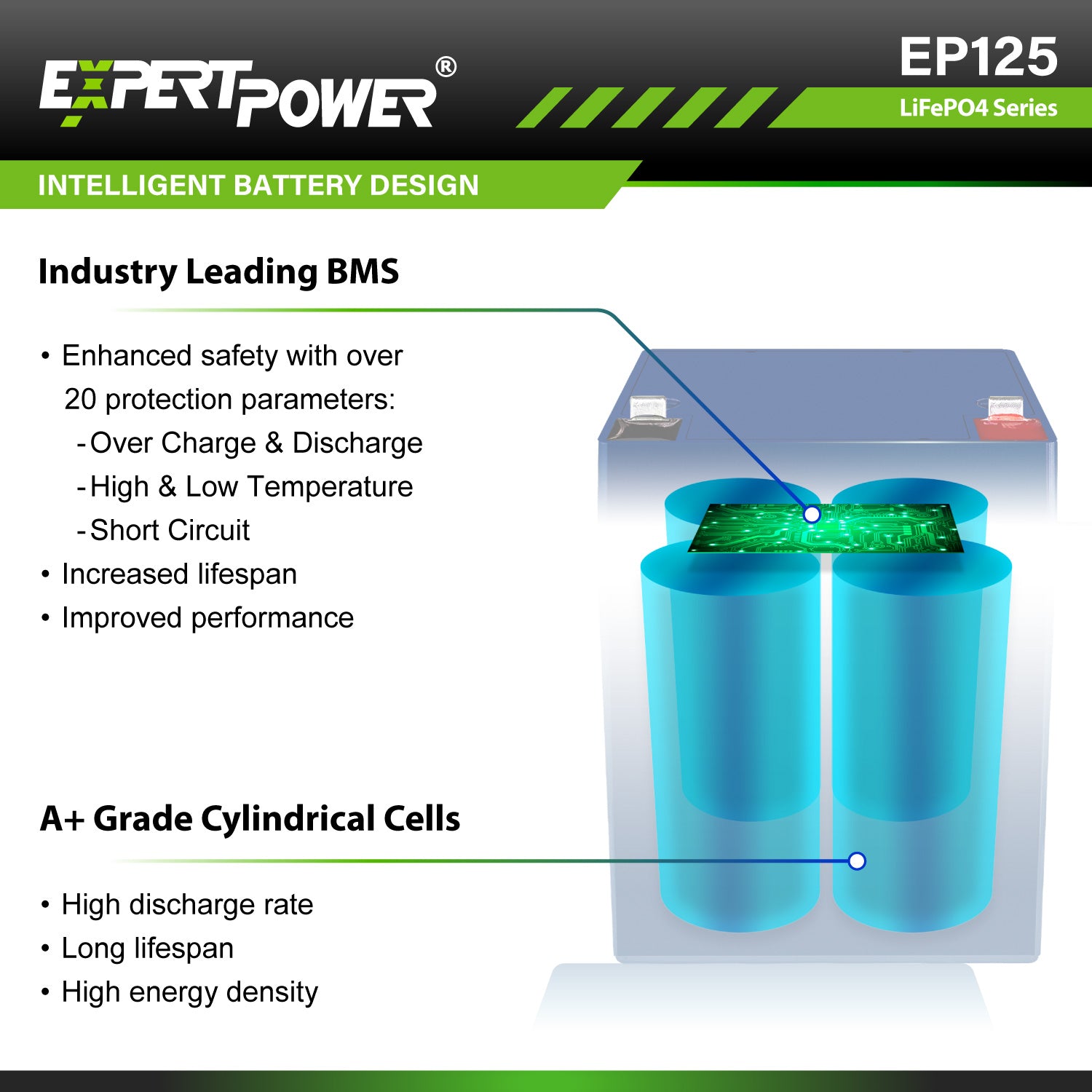

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

SMART CHARGERS

~Best Chargers For LiFePO4 Batteries~
These chargers are optimized for charging LiFePO4 with BMS.

12V 2A 智能磷酸铁锂充电器

More Details

SPECIFICATIONS

REVIEWS

DOWNLOADS

FEATURES

SPECIFICATIONS

DOWNLOADS

Sale Off
12V 5Ah 磷酸铁锂 - EP125

Voltage

12V


CAPACITY

5安时


TERMINAL TYPE

F2


Weight

1.6 磅


DIMENSIONS

3.54 x 2.76 x 3.98 英寸


Voltage

12V


CAPACITY

5安时


TERMINAL TYPE

F2


Weight

1.6 磅


DIMENSIONS

3.54 x 2.76 x 3.98 英寸


RECOMMENDED CHARGER

12V 2A 智能磷酸铁锂充电器


Voltage

12V


CAPACITY

5安时


TERMINAL TYPE

F2


Weight

1.6 磅


DIMENSIONS

3.54 x 2.76 x 3.98 英寸


RECOMMENDED CHARGER

12V 2A 智能磷酸铁锂充电器


Additional Features


ExpertPower 12V 5Ah 锂铁磷酸盐深循环充电电池

  • 更长的使用寿命: 我们的 LiFePO4 电池可提供 2500 - 7000 次循环和 10 年使用寿命,而典型铅酸化学电池可提供 200 - 500 次循环和 3 年寿命。
  • 高效动力: 我们的 LiFePO4 电池的平坦放电曲线在高达 90% 的容量使用情况下保持在 12V 以上,与铅酸电池的运行时间仅为 50% 相比,运行时间得到了天文数字的提升。
  • 无可挑剔的轻量级: 我们的 LiFePO4 电池的重量仅为铅酸电池的 1/3,这使得它成为房车、船舶和离网应用在考虑牵引或移动性时有争议的选择。
  • 完善的保护: 锂电池独特的内置电池管理系统(BMS)可防止过度充电、深度放电、过载、过热和短路以及过低的自放电率,确保长达 1 年的免维护存储。

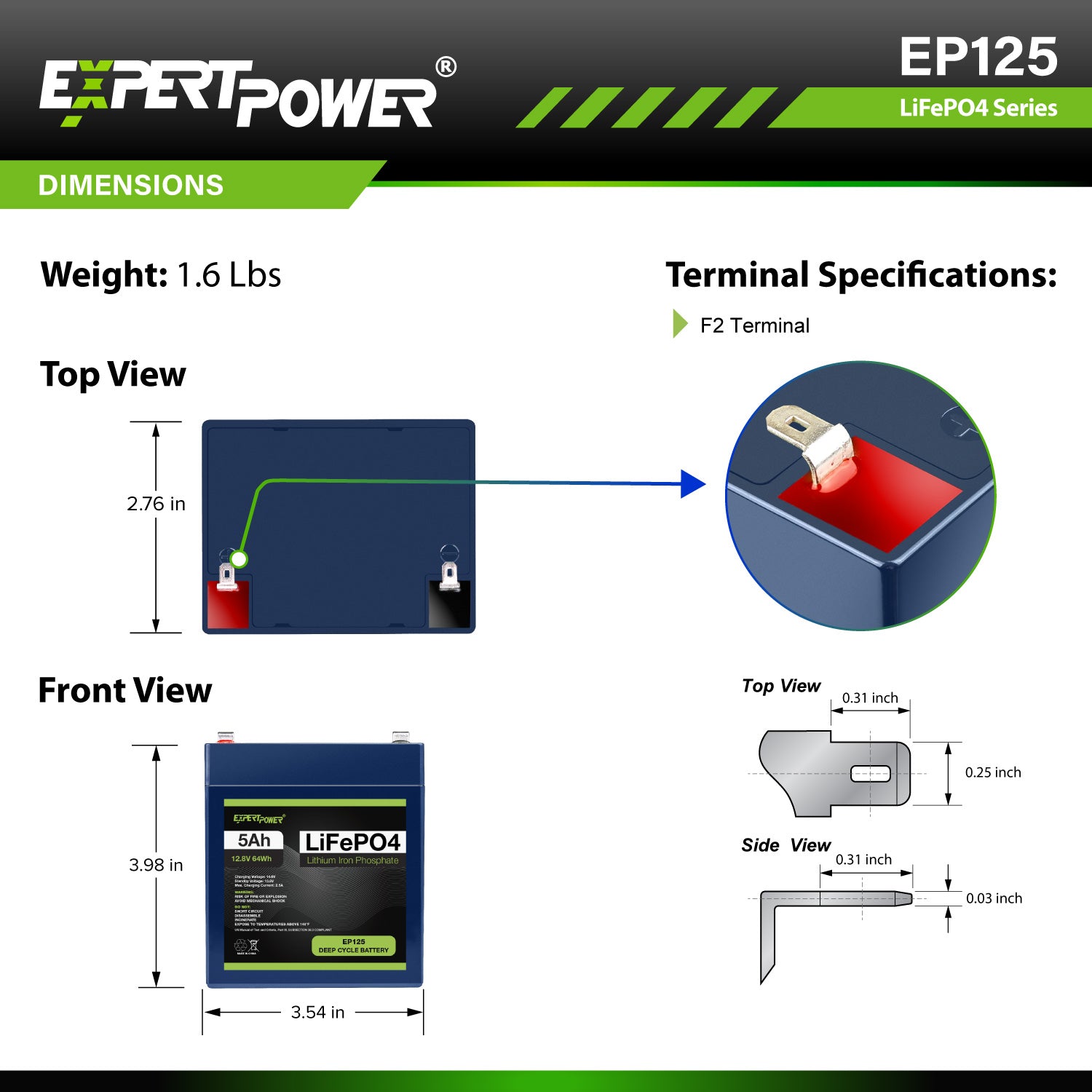

specifications


DIMENSIONS

Length

Width

3.54 英寸

2.76 英寸

Height

Height w/ Terminals

3.98 英寸

4.13 英寸


DETAILS

Battery Composition

Nominal Voltage

Charging Voltage

Rated Capacity

Terminal Type

磷酸铁锂

12.8V

14.4V

≥ 5Ah (25°C , 0.2°C)

F2

Max. Discharge Current:

Continue Discharge

Permanent Discharge

5A

7.5A 5Sec.

Max. Charge Current:

Continue Charge

2.5A

Weight

BCI Group Size

Storage Duration

UPC

SKU



Life Cycles




Operating Temperature


1.6 磅

12 Months at 77˚F

840140936148

LBHLFP12_5

2500 with 100% DOD


3600 with 80% DOD


7000 with 50% DOD

Discharge:  -4 — 140˚F



Charge:  32 — 140˚F


WARRANTY / CERTIFICATIONS

Certification

UL, CE, DOT, & ISO

Warranty

2 Year

Reviews

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
K
Kevin Munoz
Outstanding battery

Outstanding battery. So much better and much lighter than a SLA. It may not seem like much to those that don’t kayak, but the 3+ pound differential makes a world of difference. Extremely happy with my purchase.

H
Hans Perera
Works as described

Great battery but do not use this on a UPS! This battery only can discharge at 7A so if your UPS uses two of these, you only can draw 7Ax24v=168W. Usually Lifepo4 cells can handle lot more continuous discharge current so my guess is, BMS is lacking mosfets. I ended up using this battery for different project and works as described.
