首页 / 产品集合 / 产品注册集合 / 2.5千瓦时| 400W

2.5千瓦时| 400W


  • Details
  • Description
  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

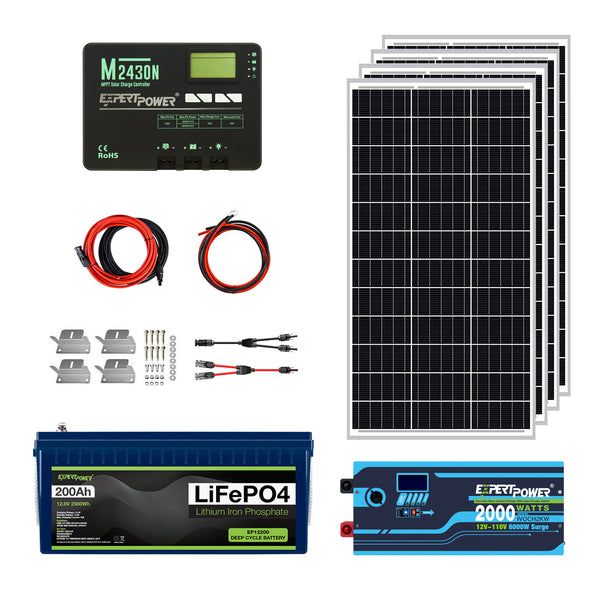

该离网太阳能系统套件包括一节 12V200Ah LiFePO4 电池、4 x 100W 单晶太阳能电池板和一个 2000W 纯正弦波逆变器充电器和一个带蓝牙适配器的 30A MPPT 太阳能充电控制器、一对 20 英尺 10AWG 太阳能电缆、一对 6 英尺 12AWG 电池电缆和 4 个太阳能电池板安装支架。

它非常适合安装在房车、船或露营车上,有助于简单、快速、轻松地购买和设置完整的离网太阳能套件。离网太阳能系统套件非常适合需要高多功能性的电力系统。 200Ah 电池提供 2560Wh 的备用电源,其效率通过 2000W 纯正弦波逆变器最大化,智能而强大,足以充分利用电池的 150A 放电电流,并配有四个 100W 太阳能电池板,可产生高达 20-24A 的电流电池的充电电流,让您无限期地保持运行。

    Save 0 %
    2.5千瓦时| 400W

    $1,999.99$1,579.99

    • Details
    • Description
    • Lithium Technology

      Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, and ROHS Certifications for every battery.

    • Built-in Safety System

      Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

    • Lithium Technology

      Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, & ROHS Certifications for every battery.



    • DOT, IATA, and CAB Certified

      Approved for transport by Ground, Air, and Sea

    • Lithium Technology

      Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, & ROHS Certifications for every battery.

    • DOT, IATA, and CAB Certified

      Approved for transport by Ground, Air, and Sea

    该离网太阳能系统套件包括一节 12V200Ah LiFePO4 电池、4 x 100W 单晶太阳能电池板和一个 2000W 纯正弦波逆变器充电器和一个带蓝牙适配器的 30A MPPT 太阳能充电控制器、一对 20 英尺 10AWG 太阳能电缆、一对 6 英尺 12AWG 电池电缆和 4 个太阳能电池板安装支架。

    它非常适合安装在房车、船或露营车上,有助于简单、快速、轻松地购买和设置完整的离网太阳能套件。离网太阳能系统套件非常适合需要高多功能性的电力系统。 200Ah 电池提供 2560Wh 的备用电源,其效率通过 2000W 纯正弦波逆变器最大化,智能而强大,足以充分利用电池的 150A 放电电流,并配有四个 100W 太阳能电池板,可产生高达 20-24A 的电流电池的充电电流,让您无限期地保持运行。

      SPECIFICATIONS

      REVIEWS

      DOWNLOADS

      FEATURES

      SPECIFICATIONS

      DOWNLOADS


      Kit Includes


      1x

      4x

      specifications

      • 100Ah LiFePO4 Battery
        Battery
      • 100W Solar Panel
        Solar Panel
      • Bluetooth Module BT-1
        Bluetooth
      • 30A MPPT Controller
        Controller
      • 2KW Inverter Charger
        Controller

      DIMENSIONS

      Length

      Weight

      13 英寸

      6.8 英寸

      Height

      Height w/ Terminals

      8.4 英寸

      9.3 英寸


      DETAILS

      Battery Composition

      Nominal Voltage

      Charging Voltage

      Rated Capacity

      Terminal Type

      磷酸铁锂

      12.8V

      14.4V

      ≥ 100Ah (25°C , 0.2°C)

      F12/M8

      Weight

      BCI Group Size

      Storage Duration

      UPC

      SKU



      Life Cycles




      Operating Temperature


      27 磅

      31

      12 Months at 77˚F





      2500 with 100% DOD


      3600 with 80% DOD


      7000 with 50% DOD

      Discharge:  -4 — 140˚F



      Charge:  32 — 140˚F

      Max. Discharge Current:

      Continue Discharge

      Permanent Discharge

      100A

      200A 2Sec.

      Max. Charge Current:

      Continue Charge

      50A

      Weight

      BCI Group Size

      Storage Duration







      Life Cycles




      Operating Temperature


      27 磅

      31

      12 Months at 77˚F





      2500 with 100% DOD


      3600 with 80% DOD


      7000 with 50% DOD

      Discharge:  -4 — 140˚F



      Charge:  32 — 140˚F


      WARRANTY / CERTIFICATIONS

      Certification

      UL, CE, DOT, & ISO

      Warranty

      1 Year


      PHYSICAL DETAILS

      Dimensions

      Weight

      40.16 x 20.08 x 1.38 英寸

      12.8 磅

      Cells

      Connections

      单晶太阳能电池

      光伏发电


      INTERNAL SPECS

      Rated Voltage [Vmpp]
      Rated Current [Impp]
      Open Circuit Voltage [Voc]

      Short Circuit Current [Isc]

      Max Series Fuse Rating

      18.81V

      5.32A

      22.2V

      5.6A

      15A

      Power Temp Coefficient

      Peak Power

      Working Temp.

      Max. System Voltage

      –0.45% / °C

      100W

      -20 - 75°C / -4 -167°F

      1000VDC


      WARRANTY / CERTIFICATIONS

      Certification

      UL

      Warranty

      1 Year

      该蓝牙模块与我们的MPPT太阳能充电控制器兼容,通过组件的RS232通信端口连接,通过DC Home应用程序(适用于Apple和Android手机)无线检查和调整系统参数

      兼容的 MPPT 太阳能充电控制器:

      SCSMPPT20L - 20A MPPT
      SCSMPPT30L - 30A MPPT
      SCSMPPT60L - 60A MPPT


      PHYSICAL DETAILS

      Dimensions

      Weight

      9 x 6.5 x 2.5 英寸

      3.75 磅

      Terminals

      Battery Compatibility
      Battery Compatibility

      高达#8AWG

      SLA, Flooded, Gel, AGM, LiFePo4


      INTERNAL SPECS

      Nominal Voltage

      Rated Charge Current

      Max. PV Input Voltage

      Self-Consumption

      12/24V Auto Recognition

      30A

      100V

      ≤10mA

      Enclosure

      Temp. Compensation


      Temperature Ranges


      IP32

      -3mV/℃/2V

      Operational:  31°F — 113°F


      Storage:        -31°F — 176˚F


      WARRANTY / CERTIFICATIONS

      Certification

      CE / EMC 认证

      Warranty

      1 Year


      PHYSICAL DETAILS

      Dimensions

      Weight

      18.38 x 7.63 x 7.8 英寸

      44 磅

      Noise

      Battery Compatibility
      Battery Compatibility

      Max 60dB

      SLA, Flooded, Gel, AGM, LiFePo4


      INTERNAL SPECS

      Rated Input Voltage

      Rated Output Voltage

      Output Voltage Range

      Nominal Output Frequency

      Efficiency

      12V

      110Vac / 120Vac / 130Vac

      ±10% rms

      50/60 ± 0.3Hz

      >90%

      Automatic Shut-Down:

      Low DC Input Voltage

      High DC Input Voltage

      10.0Vdc ± 0.3Vdc

      16Vdc ± 0.3Vdc

      Recovery:

      High DC input voltage

      15Vdc ± 0.3Vdc

      Low Battery Alarm

      Battery Charger Current

      Power-saving mode

      Power saving on

      Humidity



      Overload Protection






      Overload Protection








      Overload Protection





      Temperature Ranges


      10Vdc ± 0.3Vdc

      40A

      10W

      20W~60W

      5% to 95%

      110%≤load≤125% ±10%: Shutdown after 15 min.

      125%≤load≤150% ±10%: Shutdown after 60s

      Load>150% ±10%: Shutdown after 20s

      Operational:  32°F — 140°F

      Storage:    5°F — 140˚F


      WARRANTY / CERTIFICATIONS

      Certification

      UL2743/CE/EMC/FCC

      Warranty

      1 Year
