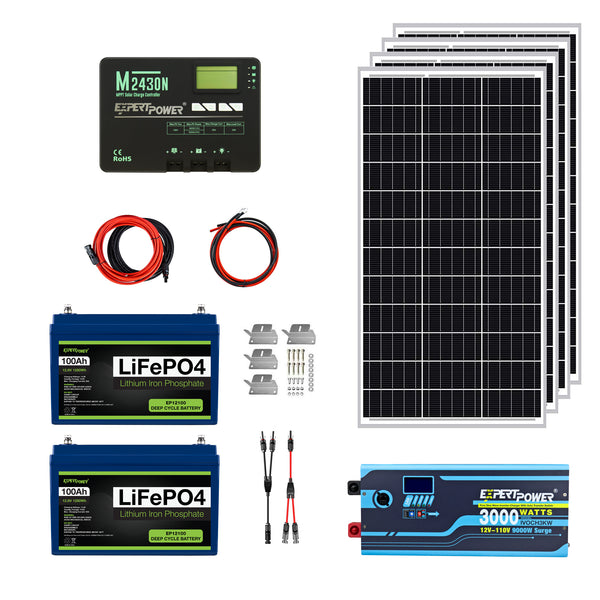

该离网太阳能系统套件包括两节 12V100Ah LiFePO4 电池、4 x 100W 单晶太阳能电池板和一个 3000W 纯正弦波逆变器充电器和一个带蓝牙适配器的 30A MPPT 太阳能充电控制器、一对 20 英尺 10AWG 太阳能电缆、一对 6 英尺 12AWG 电池电缆、4 x 太阳能电池板安装支架和一套 Y 分支适配器电缆。 它非常适合安装在房车、船或露营车上，有助于简单、快速、轻松地购买和设置完整的离网太阳能套件。离网太阳能系统套件非常适合需要高多功能性的电力系统。两块 100Ah 电池可提供 2560Wh 的备用电源，其效率通过 3000W 纯正弦波逆变器最大化，智能而强大，足以充分利用电池的 100A 放电电流，并配有四个 100W 太阳能电池板，可产生多达 20 -24A 的电池充电电流，让您无限期地保持运行。
Title
-
LiFePO4 Battery
-
MPPT Solar Charge Controller
-
Solar Panel
-
Inverter Charger
General Specifications
Weight
48.3 磅
Length
20.6英寸
Width
9.5 英寸
Height
8.6英寸
Certification
UL, CE, DOT, & ISO
Warranty
2 Year
Technical Specifications
Nominal Voltage
12.8V
Charging Voltage
14.4V
Rated Capacity
≥ 200Ah (25°C , 0.2°C)
Continuous Discharge
150A
Permanent Discharge
200A 2Sec.
Continuous Charge
50A
Life Cycles
2500 with 100% DOD, 3600 with 80% DOD, 7000 with 50% DOD
Operating Temperature
Discharge: -4 — 140˚F, Charge: 32 — 140˚F
Storage Duration
6 Months
Battery Composition
磷酸铁锂
Terminal Type
F12M8
MODBUS Protocol
Full Spec Sheet
General Specifications
Weight
3.75 磅
Length
9.65 in.
Width
7.09 in.
Height
3.24 in.
Certification
UL
Warranty
1 Year
Technical Specifications
Nominal Voltage
12/24V Auto Recognition
Rated Charge Current
30A
Max. PV Input Voltage
100V
Self-Consumption
≤10mA
Enclosure
IP32
Temp. Compensation
3mV/℃/2V
Temperature Ranges
Operational: -31°F — 113°F, Storage: -31°F — 176˚F
Battery Compatibility
SLA, Flooded, Gel, AGM, LiFePo4
Wire Size
Up to #7AWG
Full Spec Sheet
General Specifications
Weight
12.8 磅
Length
35.43 in
Width
22.83 in
Height
1.18 in
Certification
UL
Warranty
2 Year
Technical Specifications
Rated Voltage
12.8V
Rated Current
5.32A
Open Circuit Voltage
22.2V
Short Circuit Current
5.6A
Max Series Fuse Rating
15A
Power Temp Coefficient
–0.45% / °C
Voltage Temp Coefficient
-0.37% / °C
Current Temp Coefficient
0.1% / °C
Max. System Voltage
1000VDC
Full Spec Sheet
General Specifications
Weight
44 磅
Length
18.38 英寸
Width
7.63 英寸
Height
7.8英寸
Certification
UL
Warranty
2 Year
Technical Specifications
Battery Compatibility
SLA, Flooded, Gel, AGM, LiFePo4
Noise
Max 60dB
Rated Input Voltage
12V
Rated Output Voltage
110Vac / 120Vac / 130Vac
Nominal Output Frequency
50/60 ± 0.3Hz
Output Voltage Range
±10% rms
Battery Charger Current
40A
Recommended Operating Temperature
32°F — 140°F
Product Manual
Title
Pre-Made LiFePO4 Battery Solar Kits
Each package provides perfectly matched components – efficient solar panels, a durable LiFePO4 battery, and smart charge controller – designed for hassle-free setup and dependable power right out of the box.
