5KWH | 600W - 24V

  • Details
  • Description

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, and ROHS Certifications for every battery.

  • Built-in Safety System

    Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.



  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

  • Lithium Technology

    Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

  • >2500 Charge Cycles

     2500 - 7000 cycles and a 10 year lifetime cycle use.

  • Environmentally Friendly

    ISO 9001, UL, & ROHS Certifications for every battery.

  • DOT, IATA, and CAB Certified

    Approved for transport by Ground, Air, and Sea

This Off-Grid Solar System Kit includes two 24V 100Ah LiFePO4 batteries, 6 x 100W Solar Panels and one 40A MPPT Solar Charge Controller and one 24V 5KW Pure Sine Wave Inverter Charger.

It is perfect for installation on an RV, boat, or camper and helps buying and setting up a complete off-grid solar kit simple, quick and easy. The Off-Grid Solar System Kit is ideal for a power system that requires high versatility. The two 100Ah batteries provide 5120Wh worth of backup power with their efficiency maximized by the 5000W pure sine wave inverter, smart and powerful enough to take full advantage of the battery's 100A discharge current and complimented with six 100W solar panels that can generate up to 24-36A worth of charging current for the batteries, keeping you up and running indefinitely.

    Save 0 %
    5KWH | 600W - 24V
    $3,820.81$3,438.99
    • Details
    • Description

    • Lithium Technology

      Flat discharge curve holds above 12V for up to 95% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, and ROHS Certifications for every battery.

    • Built-in Safety System

      Unique built-in Battery Management System (BMS) protects our LiFePO4 batteries from overcharge, deep discharge, overloading, overheating, short circuit, and excessive low self-discharge rate. This built-in system can ensure up to 1-year of maintenance-free storage.

    • Lithium Technology

      Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, & ROHS Certifications for every battery.



    • DOT, IATA, and CAB Certified

      Approved for transport by Ground, Air, and Sea

    • Lithium Technology

      Flat discharge curve holds above 12V for up to 90% of its capacity usage providing huge boosts in run-time compared to only 50% in Lead Acid.

    • >2500 Charge Cycles

       2500 - 7000 cycles and a 10 year lifetime cycle use.

    • Environmentally Friendly

      ISO 9001, UL, & ROHS Certifications for every battery.

    • DOT, IATA, and CAB Certified

      Approved for transport by Ground, Air, and Sea

    This Off-Grid Solar System Kit includes two 24V 100Ah LiFePO4 batteries, 6 x 100W Solar Panels and one 40A MPPT Solar Charge Controller and one 24V 5KW Pure Sine Wave Inverter Charger.

    It is perfect for installation on an RV, boat, or camper and helps buying and setting up a complete off-grid solar kit simple, quick and easy. The Off-Grid Solar System Kit is ideal for a power system that requires high versatility. The two 100Ah batteries provide 5120Wh worth of backup power with their efficiency maximized by the 5000W pure sine wave inverter, smart and powerful enough to take full advantage of the battery's 100A discharge current and complimented with six 100W solar panels that can generate up to 24-36A worth of charging current for the batteries, keeping you up and running indefinitely.

      SPECIFICATIONS

      REVIEWS

      DOWNLOADS

      FEATURES

      SPECIFICATIONS

      DOWNLOADS


      Kit Includes

      2x

      6x

      1x

      1x

      1x

      1x

      1x

      6x

      specifications

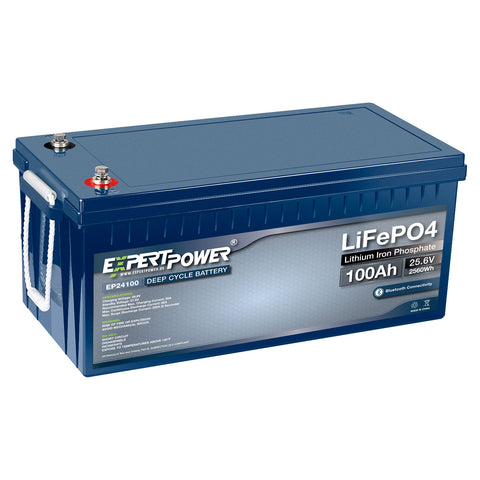

      • 100Ah LiFePO4 Battery
        Battery
      • 100W Solar Panel
        Solar Panel
      • Bluetooth Module BT-2
        Bluetooth

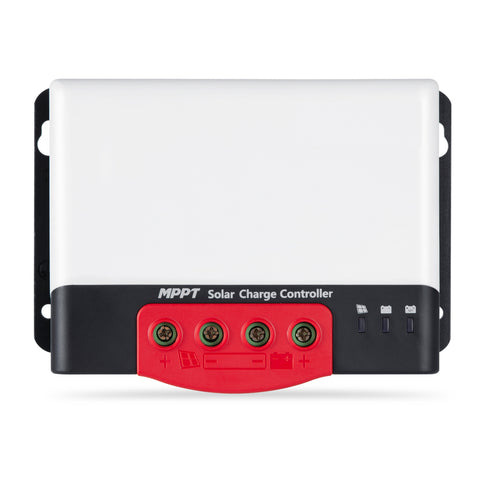

      • 40A MPPT Controller
        Controller

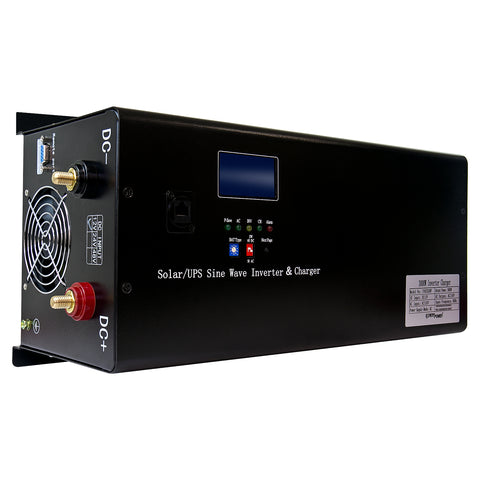

      • 5KW Inverter Charger
        Inverter Charger

      DIMENSIONS

      Length

      Weight

      20.6 In

      9.5 in

      Height

      Height w/ Terminals

      8.6 In

      8.8 in

      DETAILS

      Battery Composition

      Nominal Voltage

      Charging Voltage

      Rated Capacity

      Terminal Type

      LiFePO4

      25.6V

      28.8V

      ≥ 100Ah (25°C , 0.2°C)

      M8

      Weight

      BCI Group Size

      Storage Duration

      UPC

      SKU



      Life Cycles




      Operating Temperature


      49 Lbs

      Group 4D

      12 Months at 77˚F





      2500 with 100% DOD


      3600 with 80% DOD


      7000 with 50% DOD

      Discharge:  -4 — 140˚F



      Charge:  32 — 140˚F

      Max. Discharge Current:

      Continue Discharge

      Permanent Discharge

      95A

      150A 3Sec.

      Max. Charge Current:

      Continue Charge

      50A

      Weight

      BCI Group Size

      Storage Duration







      Life Cycles




      Operating Temperature


      49 Lbs

      Group 4D

      12 Months at 77˚F





      2500 with 100% DOD


      3600 with 80% DOD


      7000 with 50% DOD

      Discharge:  -4 — 140˚F



      Charge:  32 — 140˚F

      WARRANTY / CERTIFICATIONS

      Certification

      UL, CE, DOT, & ISO

      Warranty

      1 Year

      PHYSICAL DETAILS

      Dimensions

      Weight

      40.16 x 20.08 x 1.38 in

      12.8 Lbs

      Cells

      Connections

      Monocrystalline solar cells

      PV

      INTERNAL SPECS

      Rated Voltage [Vmpp]
      Rated Current [Impp]
      Open Circuit Voltage [Voc]

      Short Circuit Current [Isc]

      Max Series Fuse Rating

      18V

      5.56A

      22.5V

      5.84

      15A

      Power Temp Coefficient

      Voltage Temp Coefficient

      Current Temp Coefficient

      Max. System Voltage

      –0.45% / °C

      -0.37% / °C

      0.1% / °C

      1000VDC

      WARRANTY / CERTIFICATIONS

      Certification

      UL

      Warranty

      1 Year

      This Bluetooth Module is compatible with our MPPT Solar Charge Controllers with the connection on the component's TTL communication port, wirelessly check and adjust your system's parameters through the DC Home App (available with the Apple and Android phones)

      Compatible MPPT Solar Charge Controller:

      SCSMPPT40 - 40A MPPT

      PHYSICAL DETAILS

      Dimensions

      Weight

      7.2 x 4.5 x 2.25 in

      2.25 Lbs

      Terminals

      Battery Compatibility
      Battery Compatibility

      Up to #7AWG

      SLA, Flooded, Gel, AGM, LiFePo4

      INTERNAL SPECS

      Nominal Voltage

      Rated Charge Current

      Max. PV Input Voltage

      Self-Consumption

      12/24V Auto Recognition

      40A

      100V

      ≤10mA

      Enclosure

      Temp. Compensation


      Temperature Ranges


      IP32

      -3mV/℃/2V

      Operational:  -31°F — 113°F


      Storage:        -31°F — 176˚F

      WARRANTY / CERTIFICATIONS

      Certification

      CE / EMC Certifications

      Warranty

      1 Year

      PHYSICAL DETAILS

      Dimensions

      Weight

      21.5 x 8 x 9 In

      67 Lbs

      Noise

      Battery Compatibility
      Battery Compatibility

      Max 60dB

      SLA, Flooded, Gel, AGM, LiFePo4

      INTERNAL SPECS

      Rated Input Voltage

      Rated Output Voltage

      Output Voltage Range

      Nominal Output Frequency

      Efficiency

      24V

      110V

      ±10% rms

      50/60 ± 0.3Hz

      >90%

      Automatic Shut-Down:

      Low DC Input Voltage

      High DC Input Voltage

      20.0Vdc ± 0.3Vdc

      32Vdc ± 0.3Vdc

      Recovery:

      High DC input voltage

      31Vdc ± 0.3Vdc

      Low Battery Alarm

      Battery Charger Current

      Power-saving mode

      Power saving on

      Humidity



      Overload Protection






      Overload Protection








      Overload Protection





      Temperature Ranges


      21Vdc ± 0.3Vdc

      50A

      10W

      20W~60W

      5% to 95%

      110%≤load≤125% ±10%: Shutdown after 15 min.


      125%≤load≤150% ±10%: Shutdown after 60s


      Load>150% ±10%: Shutdown after 20s

      Operational:  32°F — 140°F


      Storage:    5°F — 140˚F

      WARRANTY / CERTIFICATIONS

      Certification

      CE / EMC Certifications

      Warranty

      1 Year
